Product Range – 3-way Manifolds Valves

3 Way Manifolds Valves manufacturer, supplier, and exporter in India

Are you looking for superior quality 3 Way Manifolds Valves exporter and suppliers? Get quick delivery and dispatch available.

ENQUIRE NOW WHATSAPP
3 Way Manifolds Valves manufacturer, supplier, and exporter in India
85+
Countries Served
1/4″–1/2″
Size Range
6000/10000
PSI Rating
316 / 316L
Stainless Steel
54mm Flange
IEC 61518 Mount
01 — Overview

Buy best price high-quality, corrosion resistant 3-way Manifolds Valves, Three Way Ball Valve, Brass IS-319 / BS - 218 Instrumentation Ball Valves, brass ball valves, valve mini brass, Straight Type 3-way Manifolds Valves, H Type 3-way Manifolds Valves, T Type 3-way Manifolds Valves, Direct Mount 3-Way Manifold Valves from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

At Pioneer Industries, we offer these Industrial 3-Way Manifold Valves having utmost functionality for your required applications. We are manufacturer, supplier of 3-Way Manifolds Valves and India’s leading 3-Way Manifolds Valves Exporters in Mumbai.

Global Supply

Pioneer Industries manufacturing and exporting high quality 3 Way Manifolds Valves worldwide.

We are India’s one of the leading 3 Way Manifolds Valves manufacturers and exporters to more than 85 countries exporting and manufacturing on a large scale. All size supply maintains a massive inventory of 3 Way Manifolds Valves, with all standard sizes and numerous styles available.

3 Way Manifolds Valves are manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the 3 Way Manifolds Valves are available in various material grades, and coatings/platings are available. We’ve got the right product for your needs.

PDF Catalogue
Catalogue
Download the 3-way Manifolds Valves PDF

To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

CALL 9821023876 SEND ENQUIRY
02 — Product Detail

3 Way Manifolds Valves Supplier

Pioneer Industries’ 3-Way Manifold Valves are designed for connecting differential pressure transmitters or flow records to impulse line tubing. They feature a simple, robust three-valve configuration that provides two block/isolation valves and one central equalizer valve for differential zero-calibration.

Features of 3-way Manifolds Valves:

  • Optimized for DP Transmitters: Engineered for direct mounting or remote connection of impulse lines & differential pressure transmitters.
  • Three-Valve Precision Layout: Incorporates two block valves for complete high- and low-pressure line isolation and one equalizer valve for instrument zeroing.
  • Severe Pressure Ratings: Rated for pressures as high as 6,000 PSI at 200°F or 4,000 PSI at 500°F with PTFE packing. Valves for 10,000 PSI working pressure are also available.
  • IEC 61518 Standardized Centers: Instrument side flange connection designed with 54 mm (2-1/8″) center distance for direct bolting to standard DP transmitter heads.
  • Non-Rotating Stem Design: Ground and thread-rolled spindle with non-rotating stem tip prevents seat galling and guarantees bubble-tight shut-off.
  • High-Temperature Grafoil Seals: For superheated steam and elevated temperature applications, flexible Grafoil packing is standardly available.
  • 100% Factory Hydrostatic Tested: All valves undergo 100% hydrostatic and pneumatic seat testing before dispatch.
  • Sour Gas Compliance: NACE MR0175 / ISO 15156 compliant materials and mounting bracket kits available on request.
+ + + +
Specification

Design: 3 Valve Manifolds designed for Direct Mounting and Remote Mounting.
Instrument Connection: Flange connection suitable for DP transmitters (DIN 19213 / IEC 61518) or 1/2″ NPT Female.
Process Connection: 1/2″ Female NPT, BSPT, BSPP, or Flanged.
Bonnet Construction: Screwed bonnet with safety locking pin. Ground and thread-rolled spindle, packing below threads.
Working Pressure: Standard 6,000 PSI (414 bar); Optional 10,000 PSI (690 bar).
Materials: SS 316, SS 316L, SS 304, Duplex 2205, Super Duplex 2507, Monel 400, Hastelloy C276.

03 — Applications

Applications/Uses of 3 Way Manifolds Valves

3 Way Manifolds Valves find use in a variety of industrial applications, including:

01

Oil and gas –

These 3 Way Manifolds Valves find application in processing equipment such as tanks, drilling rigs, and pumps, and used in the oil and gas industries giving stable performance in high stress and corrosive conditions.

02

Building and Construction –

Scaffolding and other support structures requires variety 3 Way Manifolds Valves to safeguard and guarantee the stability of structure during construction.

03

Chemical refining –

In chemical refineries, 3 Way Manifolds Valves are made using corrosion resistant high performance materials, such as Brass, tool alloys, and exotic metals and find use in machineries such as heat exchangers, chemical tanks, and processing systems.

04

Marine –

3 Way Manifolds Valves installed in the marine industry necessitate excellent corrosion resistance to withstand the extended periods of exposure to saltwater that marine ramps, marine decks, bulkheads, and tanks experience.

05

Automobile and transportation –

3 Way Manifolds Valves are used to assemble a wide range of vehicles, including commercial vehicles like trucks, passenger vehicles like cars, airplanes, and specialized automobile equipment.

06

Power generation –

Distinctive applications include use in exhaust systems, electrical equipment, motors and pumps, and storage containers. These 3 Way Manifolds Valves for the power generation industry are made of corrosion resistant and high strength materials such as Brass, aluminium, copper, nickel alloys, and other steel alloys.

07

Agriculture –

In the agricultural industry, these Fittings are used in field irrigation and filtration systems, and other farming equipment, drying units, buildings, and grain bins.

08

Military –

Military 3 Way Manifolds Valves are manufactured and functionally designed to withstand extreme temperatures, corrosive compounds, and high stress environments and find applications like include equipment motors, heat exchangers, and engines, and processing equipment.

04 — Industries

Applications Industries of 3 Way Manifolds Valves

Pioneer Industries’ 3 Way Manifolds Valves are widely used in numerous industries like

+ Pharmaceutical Equipment
+ Chemical Equipment
+ Sea Water Equipment
+ Heat Exchangers
+ Condensers
+ Pulp and Paper Industry
+ Power Generation
+ Gas Processing
+ Aerospace Industry
+ Nuclear Energy Sector
+ Off-Shore Oil Drilling
+ Oil & Gas Industries
+ Chemical Industry
+ Petroleum Industries
+ Defence Industry
05 — Range

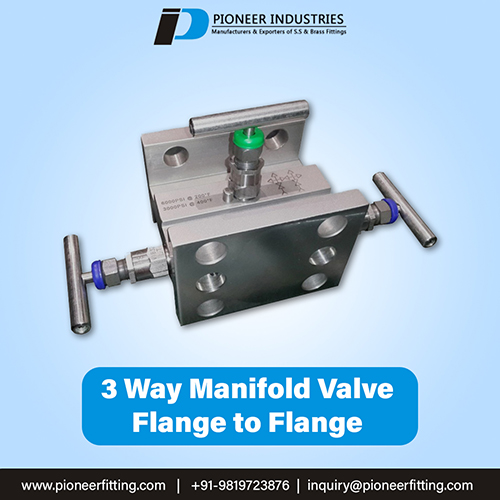

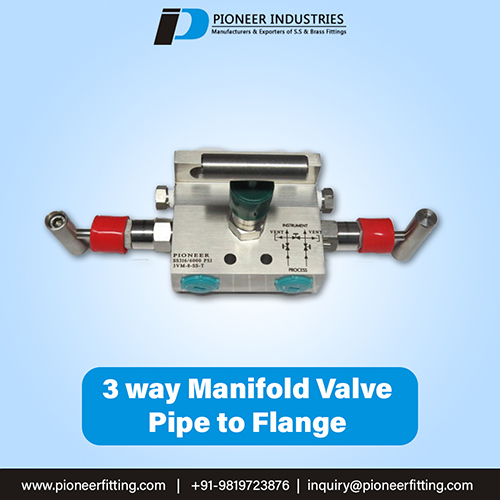

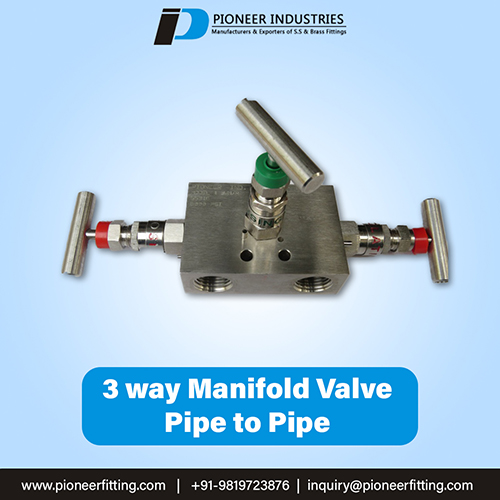

Types of 3 Way Manifolds Valves offered by Pioneer Industries

06 — FAQs

Frequently Asked Questions about 3-way Manifolds Valves

Answers to the questions buyers, piping engineers, and procurement teams most often ask before sourcing 3-way Manifolds Valves from Pioneer Industries.

A 3-way instrumentation manifold valve is a dedicated fluid control manifold engineered specifically for differential pressure (DP) transmitters and flow transmitters. It comprises three precision-machined needle valves inside a single bar stock body: two isolate (block) valves (one for the high-pressure side and one for the low-pressure side) and one central equalizer valve interconnecting the high and low chambers. During normal operating conditions, both block valves are open and the equalizer valve is closed. The equalizer valve allows technicians to balance line pressures across both sides of the transmitter cell for zero-calibration without removing the instrument from service.
To prevent catastrophic one-sided over-pressurization of the sensitive transmitter capsule, a strict commissioning sequence must be followed: (1) Ensure both high- and low-pressure block valves are initially closed and open the central equalizer valve; (2) Slowly open the high-pressure block valve to pressurize both transmitter chambers simultaneously; (3) Close the equalizer valve; (4) Slowly open the low-pressure block valve to put the transmitter into active differential measurement service. For decommissioning, reverse the steps: close the low-pressure valve first, open the equalizer valve, and finally close the high-pressure block valve.

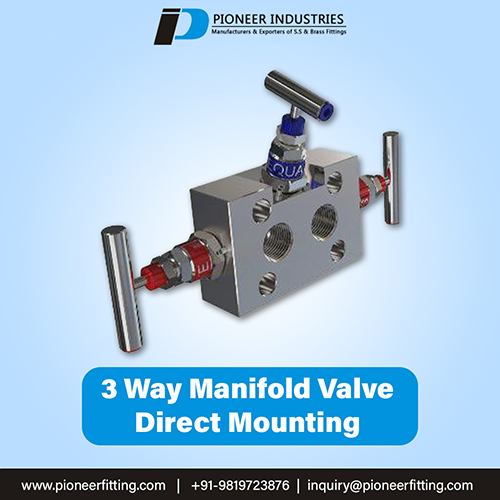

Direct-mount 3-way manifold valves bolt directly to the differential pressure transmitter cell flange using standard 54 mm (2-1/8″) center-to-center bolt spacing compliant with IEC 61518 and DIN 19213. By eliminating inter-connecting tubing nipples, compression fittings, and brackets, direct mounting slashes potential fugitive emission leak points by over 60%, drastically dampens acoustic line resonance, lowers temperature droop, and minimizes installation footprint inside tight instrument enclosures.
Pioneer Industries manufactures 3-way manifold valves rated for standard working pressures of 6,000 PSI (414 bar) at 200°F (93°C), with an optional high-pressure design rated up to 10,000 PSI (690 bar). Temperature limits are governed by the packing system: standard virgin PTFE packing operates reliably from -54°C to +232°C (-65°F to +450°F), while Grafoil (die-formed flexible graphite) packing extends operating capability to +550°C (+1022°F) for superheated steam, thermal oil, and high-heat refining processes, strictly abiding by ASME B31.3 codes.
Standard manufacturing utilizes forged or hot-rolled ASTM A479 / A276 Grade 316 and 316L stainless steel. For aggressive upstream oil and gas, sour service, and coastal offshore environments, we supply 3-way manifolds in Duplex 2205, Super Duplex 2507, Monel 400, Hastelloy C276, and Inconel 625/825. All sour gas manifolds strictly comply with NACE MR0175 / ISO 15156 and NACE MR0103, featuring controlled bulk hardness (< 22 HRC), anti-galling Stellite or hardened tips, and full solution annealing.
Pioneer Industries' direct-mount 3-way manifolds conform exactly to IEC 61518 Type A and Type B as well as DIN 19213 transmitter flange interface standards. The dual port orifices and 4-bolt clearance holes are CNC-machined at a precise 54 mm (2-1/8″) center-to-center distance, ensuring seamless, universal bolting to Rosemount, Yokogawa, ABB, Honeywell, Schneider Foxboro, and Siemens differential pressure transmitters with PTFE or Grafoil oval flange sealing rings.
Our 3-way manifold bonnets utilize cold-rolled stem threads isolated from process fluid above the packing gland to prevent slurry abrasion and thread corrosion. A non-rotating, self-centering stem tip eliminates torsional rubbing against the valve orifice, preventing seat galling. Safety features include an internal stem back-seat shoulder preventing blowout under extreme surge pressures, a positive bonnet locking pin to stop accidental disassembly, and protective color-coded dust caps.
Yes. While standard 3-way manifolds feature process and instrument ports with a center equalizer, Pioneer Industries can machine auxiliary 1/4″ or 1/2″ Female NPT test/purge ports into the body. These ports allow operators to inject flushing fluid, hook up purge lines to prevent slurry sedimentation, or connect portable digital test gauges for localized differential verification.
Every 3-way manifold valve manufactured at our Mumbai facility undergoes 100% hydrostatic shell testing at 1.5 times rated working pressure (9,000 PSI for 6,000 PSI models) and nitrogen gas seat leakage testing at 1,000 PSI in compliance with API 598 and BS EN 12266-1. Each order is dispatched with complete EN 10204 Type 3.1 Material Test Certificates detailing optical emission spectrometry (PMI), mechanical tensile/yield data, heat treatment records, and hydrostatic test charts.
Pioneer Industries exports to over 85 countries worldwide with robust seaworthy packaging, including desiccated vacuum sealing, end-cap thread protectors, and treated wooden crates adhering to ISPM-15 export regulations. We supply complete 2-inch pipe stanchion mounting bracket kits in SS304 or SS316, high-tensile 7/16-20 UNF mounting bolts (Grade B8M), and flange O-rings to ensure seamless plug-and-play installation on global plant sites.
