Q: How does the direct-mount flange configuration interface with standard differential pressure transmitters?

Our direct-mount 5-way manifolds feature instrument flange faces precision-bored at standard 54 mm (2-1/8″) center-to-center spacing compliant with IEC 61518 (Types A and B) and DIN 19213. Flange-to-Flange and Pipe-to-Flange models include high-tensile 7/16-20 UNF mounting bolts (ASTM A193 B8M) and PTFE/Grafoil sealing rings, enabling direct, leak-free bolting to Rosemount 3051, Yokogawa EJX, ABB 266, and Honeywell STD800 transmitters.

Q: What safety engineering features protect operators and plant assets in severe service?

Every needle valve on our 5-way manifold incorporates a two-piece stem with a non-rotating hardened tip that eliminates seat galling and reduces operating torque. The stem threads are cold-rolled and located strictly above the packing seal, isolating lubrication from aggressive chemicals. In addition, an internal back-seating shoulder ensures blowout-proof stem retention under overpressurization, while heavy-duty stainless steel bonnet lock pins prevent inadvertent body disassembly during valve operation.

Q: What quality assurance testing and certifications accompany every 5-way manifold dispatch?

Quality assurance is executed at our Mumbai facility with 100% factory inspection: hydrostatic shell testing at 1.5 times working pressure (9,000 PSI for standard models) and pneumatic bubble seat testing at 1,000 PSI with dry nitrogen in accordance with API 598 and BS EN 12266-1. All shipments include EN 10204 Type 3.1 Material Test Certificates (MTC) detailing complete chemical analysis (PMI), mechanical properties, hardness test results, and pressure test certifications.

Q: How does Pioneer Industries support bulk orders, custom mounting brackets, and worldwide export?

Pioneer Industries maintains large ready inventories of SS316/316L 5-way manifolds for same-day dispatch. We fabricate bespoke mounting bracket assemblies (suitable for 2-inch pipe stanchion mounting or wall mounting in SS304/SS316), custom port threads (NPT, BSPT, BSPP, metric), and specialized vent orientations. Exporting to more than 85 countries, we provide vacuum sealing, protective thread plugs, seaworthy wooden crating, and complete export documentation.

Question 1

What is a 5-way instrumentation manifold valve and what are the specific functions of its five valves?

Accepted Answer

A 5-way instrumentation manifold valve is an advanced flow and differential pressure control block engineered for DP transmitters, flow computers, and level meters. It incorporates five precision needle valves in a single monolithic body: two block (isolation) valves for the high- and low-pressure impulse lines, one central equalizer valve, and two independent vent (bleed) valves. This comprehensive layout provides complete process isolation, cross-chamber equalization, and controlled venting of high- and low-pressure chambers into dedicated drainage systems or atmosphere without cross-contamination.

Question 2

Why is a 5-valve manifold preferred over a 3-valve manifold for differential pressure transmitters?

Accepted Answer

While a 3-way manifold allows equalization and block functionality, it lacks integrated venting valves, forcing field engineers to crack open transmitter drain plugs or install external bleeder fittings to relieve trapped line pressure. A 5-way manifold incorporates two dedicated vent valves on the instrument side. This allows safe, controlled depressurization of each transmitter chamber independently, permits the attachment of calibration hand pumps directly to the vent ports, and eliminates the risk of high-pressure fluid spraying or splashing during field zero-checking.

Question 3

How does the dual vent design prevent cross-contamination and false zero readings during field calibration?

Accepted Answer

In differential pressure transmitters, fluid trapped in impulse piping can carry condensate, particulates, or gas bubbles. In older manifolds with a single vent, opening the vent can transfer contaminants between the high and low chambers, inducing measurement drift. With dual independent vent valves in Pioneer Industries' 5-way manifolds, each transmitter chamber can be isolated and flushed separately. Furthermore, any leakage past an isolation seat vents safely to atmosphere or drain rather than crossing into the opposing chamber, preventing false zero errors.

Question 4

What is the standard step-by-step procedure for equalizing and zero-checking a DP transmitter with a 5-way manifold?

Accepted Answer

The procedure is: (1) Ensure both vent valves are closed; (2) Close the low-pressure block valve; (3) Open the central equalizer valve (both transmitter chambers now experience equal high-side pressure); (4) Close the high-pressure block valve (the transmitter is now isolated from live process pressure); (5) Open both vent valves to bleed trapped pressure to atmosphere; (6) Verify that the transmitter reading indicates precise differential zero; (7) To return to service: close both vent valves, open the high-pressure block valve, close the equalizer valve, and finally open the low-pressure block valve.

Question 5

What pressure-temperature ratings do Pioneer Industries' 5-way manifold valves support?

Accepted Answer

Pioneer Industries manufactures 5-way manifold valves rated for a standard maximum working pressure of 6,000 PSI (414 bar) at 200°F (93°C), with high-pressure series available up to 10,000 PSI (690 bar). For temperatures between -54°C and +232°C (-65°F to +450°F), chemically inert virgin PTFE packing is standard. For high-temperature boiler feed, superheated steam, and cracker units up to +550°C (+1022°F), high-density Grafoil (flexible graphite) packing is utilized, compliant with ASME B31.3 process piping design criteria.

Question 6

Which corrosion-resistant alloys and sour gas trims are available from Pioneer Industries?

Accepted Answer

Our 5-way manifolds are precision machined from ASTM A479 / A276 Grade 316 and 316L stainless steel bar stock and forgings. For aggressive chloride, offshore marine, and sour gas applications, we manufacture manifolds in Duplex 2205 (UNS S31803), Super Duplex 2507 (UNS S32750), Monel 400, Hastelloy C276, and Inconel 625/825. Materials are fully certified to NACE MR0175 / ISO 15156 and NACE MR0103, featuring hardness verification (< 22 HRC), non-rotating Stellite/17-4PH tips, and full solution annealing.

Question 7

How does the direct-mount flange configuration interface with standard differential pressure transmitters?

Accepted Answer

Our direct-mount 5-way manifolds feature instrument flange faces precision-bored at standard 54 mm (2-1/8″) center-to-center spacing compliant with IEC 61518 (Types A and B) and DIN 19213. Flange-to-Flange and Pipe-to-Flange models include high-tensile 7/16-20 UNF mounting bolts (ASTM A193 B8M) and PTFE/Grafoil sealing rings, enabling direct, leak-free bolting to Rosemount 3051, Yokogawa EJX, ABB 266, and Honeywell STD800 transmitters.

Question 8

What safety engineering features protect operators and plant assets in severe service?

Accepted Answer

Every needle valve on our 5-way manifold incorporates a two-piece stem with a non-rotating hardened tip that eliminates seat galling and reduces operating torque. The stem threads are cold-rolled and located strictly above the packing seal, isolating lubrication from aggressive chemicals. In addition, an internal back-seating shoulder ensures blowout-proof stem retention under overpressurization, while heavy-duty stainless steel bonnet lock pins prevent inadvertent body disassembly during valve operation.

Question 9

What quality assurance testing and certifications accompany every 5-way manifold dispatch?

Accepted Answer

Quality assurance is executed at our Mumbai facility with 100% factory inspection: hydrostatic shell testing at 1.5 times working pressure (9,000 PSI for standard models) and pneumatic bubble seat testing at 1,000 PSI with dry nitrogen in accordance with API 598 and BS EN 12266-1. All shipments include EN 10204 Type 3.1 Material Test Certificates (MTC) detailing complete chemical analysis (PMI), mechanical properties, hardness test results, and pressure test certifications.

Question 10

How does Pioneer Industries support bulk orders, custom mounting brackets, and worldwide export?

Accepted Answer

Pioneer Industries maintains large ready inventories of SS316/316L 5-way manifolds for same-day dispatch. We fabricate bespoke mounting bracket assemblies (suitable for 2-inch pipe stanchion mounting or wall mounting in SS304/SS316), custom port threads (NPT, BSPT, BSPP, metric), and specialized vent orientations. Exporting to more than 85 countries, we provide vacuum sealing, protective thread plugs, seaworthy wooden crating, and complete export documentation.

5 way Manifolds Valves manufacturer, supplier, and exporter in India

Pioneer Industries manufacturing and exporting high quality 5 Way Manifolds Valves worldwide.

5 Way Manifolds Valves Supplier

Features of 5-way Manifolds Valves:

Applications/Uses of 5 Way Manifolds Valves

Oil and gas –

Building and Construction –

Chemical refining –

Marine –

Automobile and transportation –

Power generation –

Agriculture –

Military –

Applications Industries of 5 Way Manifolds Valves

Types of 5 Way Manifolds Valves offered by Pioneer Industries

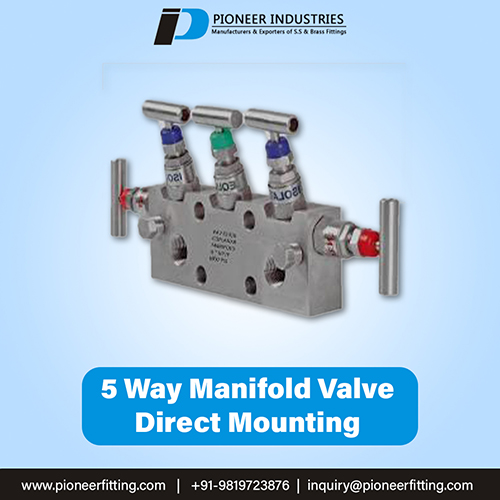

Direct Mount 5 Way Manifold Valves

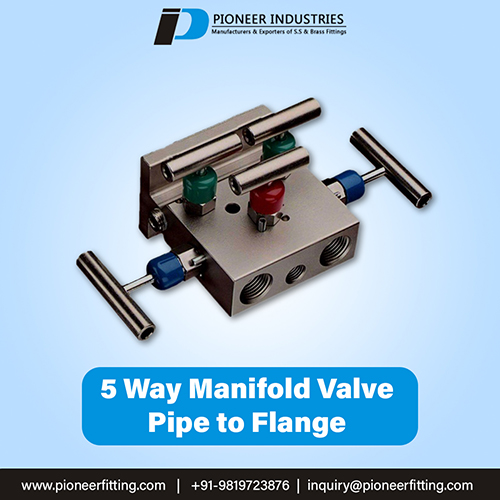

H Type 5 way Manifolds Valves pipe to flange (H Type)

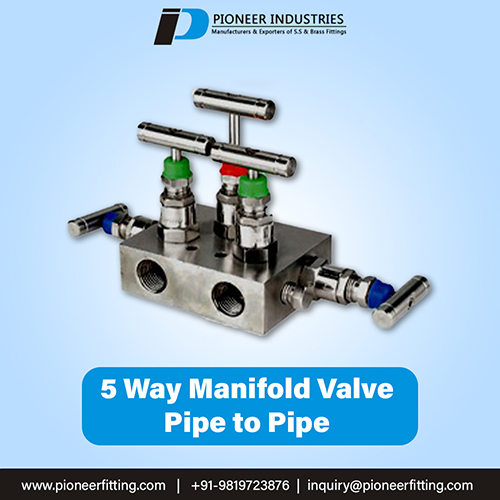

Straight Type 5 Way Manifolds Valves (Pipe to pipe)

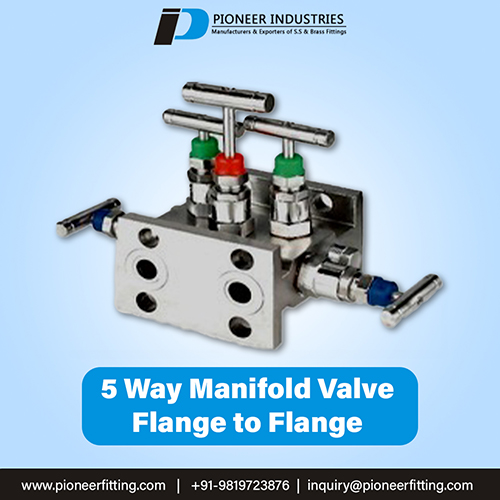

T Type 5 Way Manifolds Valves Flange to Flange (T Type)

Frequently Asked Questions about 5-way Manifolds Valves

Contact Pioneer Industries experts for detailed information
