Product Range – Stainless Steel 4 Way Ball valve

Stainless Steel 4 Way Ball valve manufacturer, supplier, and exporter in India

Are you looking for superior quality Stainless Steel 4 Way Ball Valves exporter and suppliers? Get Quick delivery and dispatch available. Buy best price high-quality, corrosion resistant Stainless Steel 4-way Ball Valves, Four Way Ball Valve, 4 Way Ball Valve, 4 Way Stainless Steel Ball Valve, Stainless Steel Ball Valve, 3 Way And 4 Way Ball Valves, Stainless Steel 4-way Ball Valve female to female from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

ENQUIRE NOW WHATSAPP
Stainless Steel 4 Way Ball valve
85+
Countries Served
1/4" - 1"
Port Size Range
Up to 6,000 PSI
Working Pressure
4:1
Safety Factor
Dual L-Port (LL)
Flow Configurations
01 — Overview

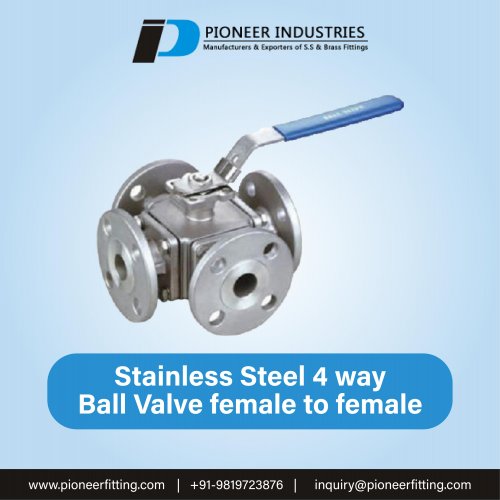

Buy best price high-quality, corrosion resistant Stainless Steel 4-way Ball Valves, Four Way Ball Valve, 4 Way Ball Valve, 4 Way Stainless Steel Ball Valve, Stainless Steel Ball Valve, 3 Way And 4 Way Ball Valves, Stainless Steel 4-way Ball Valve female to female from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

At Pioneer Industries, we offer these Industrial Stainless Steel 4-way Ball Valves having utmost functionality for your required applications. We are manufacturer, supplier of Stainless Steel 4-way Ball Valves and India’s leading Stainless Steel 4-way Ball Valves Exporters in Mumbai.

Global Supply

Pioneer Industries manufacturing and exporting high quality Stainless Steel 4 Way Ball Valves worldwide.

We are India’s one of the leading Stainless Steel 4-way Ball Valves manufacturers and exporters to more than 85 countries exporting and manufacturing on a large scale. All size supply maintains a massive inventory of Stainless Steel 4-way Ball Valves, with all standard sizes and numerous styles available.

Stainless Steel 4-way Ball Valves is manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the Stainless Steel 4-way Ball Valves are available in various material grades, and coatings/platings are available. We’ve got the right product for your needs.

PDF Catalogue
Catalogue
Download the Stainless Steel 4 Way Ball valve PDF

To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

CALL 9821023876 SEND ENQUIRY
02 — Product Detail

Stainless Steel 4 Way Ball Valves Supplier

Stainless Steel 4-way Ball Valves are advanced multiport fluid routing valves designed with four orthogonal fluid connections spaced at 90-degree intervals around a central valve chamber. Engineered predominantly with a Dual L-Port (often designated as an LL-Port or double-elbow bore), the valve permits simultaneous cross-connection and flow reversal between two independent fluid circuits upon a single quarter-turn rotation of the operating handle.

Pioneer Industries manufactures 4-way ball valves from high-tensile ASTM A479 Grade 316 / 316L stainless steel bar stock and precision block forgings. Each port features a fully encapsulated polymeric seat (PTFE, RTFE, or PEEK) that maintains positive sealing across dynamic pressure fluctuations, making this valve the industry standard for online sample loop injection, hydraulic actuator reversal, and dual-filter switching manifolds where zero cross-circuit leakage is mandatory.

Features Stainless Steel 4-Way Ball Valves:

  • Simultaneous Dual Circuit Crossover: Allows two separate fluid streams to be reversed or diverted simultaneously with a single 90° rotation.
  • Four-Seat Trunnion Supported Design: Maintains balanced, bubble-tight sealing on all four ports across high operating pressures up to 6,000 PSI.
  • Replaces Four Independent 2-Way Valves: Eliminates complex piping spiderwebs, four individual actuators, and numerous potential leak points.
  • Zero Cross-Circuit Fluid Contamination: Precision CNC seat cavities isolate independent process streams during intermediate and seated positions.
  • Blow-Out Proof Internally Loaded Stem: Engineered stem shoulder prevents stem blow-out under extreme hydraulic shock or line overpressurization.
  • Live-Loaded Belleville Stem Packing: Maintains continuous packing compression to prevent fugitive atmospheric emissions under severe thermal cycling.
  • Standard Panel Mounting & Actuator Flange: Includes bonnet mounting threads for console panels and optional ISO 5211 direct-actuation mounting.
+ + + +
Specification

Sizes: 1/4″ to 1″ (Metric 6 mm to 25 mm OD tube / pipe). Pressure ratings: Up to 6,000 PSI (414 Bar) for 1/4″ to 1/2″ and up to 3,000 PSI (207 Bar) for 3/4″ to 1″. Flow Pattern: Dual L-Port (LL Crossover) and 4-Way Cross Port. End Connections: Female NPT, BSPP, BSPT, and Integral Double Ferrule Tube Ends. Materials: ASTM A479 Grade 316 / 316L, Duplex 2205, Super Duplex 2507, and Hastelloy C-276. Seats: PTFE, RTFE, and PEEK.

03 — Applications

Applications/Uses of Stainless Steel 4 Way Ball valve

Stainless Steel 4 Way Ball valve find use in a variety of critical industrial applications, including:

01

Chromatograph Sample Loop Injection –

Simultaneously filling an analytical sample loop while flushing carrier gas, then injecting the loop into the GC column.

02

Double-Acting Hydraulic Cylinder Reversal –

Reversing supply and return lines to dual-acting hydraulic cylinders and pneumatic actuators in automation machinery.

03

Dual Heat Exchanger Flow Inversion –

Reversing fluid flow directions periodically through heat exchangers to flush accumulated silt and prevent fouling.

04

Regenerative Desiccant Air Dryers –

Switching wet compressed air and dry purge air streams between twin desiccant drying towers.

05

Sampling System Multi-Stream Diverters –

Routing dual fluid streams between waste header lines and analytical online analyzer manifolds.

06

Marine Ballast Water Treatment Skids –

Directing seawater intake through UV sterilizer filtration loops and overboard discharge lines.

07

Wellhead Hydraulic Safety Circuits –

Controlling pressure feed and rapid return fluid dumping on offshore surface safety valve (SSV) systems.

08

Lubrication Filter Duplex Crossover –

Switching lubricating oil flows across dual filter banks on heavy gas turbines without interrupting lube supply.

04 — Industries

Industries We Serve

Pioneer Industries’ Stainless Steel 4 Way Ball valve are widely used in numerous industries like:

+ Pharmaceutical Equipment
+ Chemical Equipment
+ Sea Water Equipment
+ Heat Exchangers
+ Condensers
+ Pulp and Paper Industry
+ Power Generation
+ Gas Processing
+ Aerospace Industry
+ Nuclear Energy Sector
+ Off-Shore Oil Drilling
+ Oil & Gas Industries
+ Chemical Industry
+ Petroleum Industries
+ Defence Industry
05 — Range

Types of Stainless Steel 4 Way Ball Valves offered by Pioneer Industries

06 — FAQs

Frequently Asked Questions – Stainless Steel 4 Way Ball Valves

Authoritative engineering answers regarding Dual L-Port (LL) flow reversal, crossover switching, four-seat sealing integrity, and ASME/API standards for Stainless Steel 4-Way Ball Valves.

A Stainless Steel 4-Way Ball Valve is a quarter-turn multiport valve with four fluid ports arranged at 90-degree orthogonal intervals around a central spherical cavity. In the Dual L-Port (LL-Port) configuration, the ball contains two independent, non-intersecting curved 90° flow passages. In Position 1, Port 1 connects to Port 2 while Port 3 connects to Port 4. When the handle or actuator turns 90° to Position 2, Port 1 connects to Port 4 while Port 2 connects to Port 3. This enables simultaneous crossover or reversal of two independent fluid streams without mixing the two media.
Because all four ports in a 4-way valve may experience fluctuating, independent operating pressures or partial vacuum, a conventional two-seat arrangement cannot provide reliable isolation. Pioneer Industries 4-way ball valves utilize four encapsulated polymeric seat rings surrounding every port. This 4-seat construction mechanically balances the ball, prevents fluid bypass into the non-communicating ports, and guarantees bubble-tight shut-off up to 6,000 PSI regardless of flow direction.
4-way ball valves are essential in analytical sample loop injection systems (such as online gas chromatographs), dual-filter backwashing circuits, double-acting hydraulic/pneumatic cylinder reversals, twin-tower desiccant air dryers, and heat exchanger backflushing manifolds. Using a single 4-way valve replaces four separate 2-way valves, eliminates manifold piping, and ensures instantaneous, perfectly synchronized crossover switching.
Standard bodies, stems, and balls are precision CNC-machined from ASTM A479 / A276 Grade 316 and 316L stainless steel bar stock or forged ASTM A182 F316 blocks. For offshore marine, acid gas, and chloride-rich environments, we manufacture custom valves in Duplex 2205 (UNS S31803), Super Duplex 2507 (UNS S32750), Hastelloy C-276, and Monel 400, providing full compliance with NACE MR0175 / ISO 15156 standards for sour service.
Pioneer 4-way valves are rated for working pressures up to 6,000 PSI (414 Bar) for 1/4″ and 3/8″ sizes, and up to 3,000 to 4,000 PSI (207 to 275 Bar) for 1/2″ through 1″ sizes, maintaining a certified 4:1 safety factor against hydrostatic burst per ASME B16.34. Temperature ranges depend on seat material: standard Virgin PTFE (-54°C to 180°C), Reinforced RTFE (-54°C to 232°C), and high-strength PEEK (-40°C to 260°C) for maximum pressure retention under high thermal loads.
The two fluid passages inside the Dual L-Port ball are completely separate and separated by solid stainless steel wall thickness. Furthermore, precision-machined seat cavities and high-density polymeric seats encase each port with zero dead space, ensuring that fluid in Path 1-2 never communicates or leaks into Path 3-4 during both dynamic rotation and seated positions.
Yes. Pioneer 4-way ball valves can be furnished with an integrated ISO 5211 direct-mounting pad on the bonnet neck. This permits quarter-turn (90°) double-acting or spring-return pneumatic rack-and-pinion actuators, as well as electronic rotary actuators, to mount directly onto the valve body without bulky brackets, ensuring rigid alignment and rapid, automated loop switching.
We manufacture 4-way valves with female NPT, BSPT, and BSPP pipe threads conforming to ASME B1.20.1 and ISO 228/1, as well as integral double-ferrule compression tube ends (fractional 1/4″ to 1″ and metric 6mm to 25mm OD) that connect directly to instrumentation tubing without additional pipe-to-tube adapters.
Pioneer 4-way ball valves feature a heavy-duty directional handle with a four-way flow schematic stamped directly onto the handle plate. The indicator lines point directly between the connected ports in each position, providing unambiguous, fail-safe visual confirmation of fluid flow pathways inside control panels.
Every 4-way valve undergoes 100% factory inspection in accordance with API 598 and BS EN 12266-1. Testing includes hydrostatic shell proof testing at 1.5× rated pressure, high-pressure hydrostatic seat testing across all four ports, and low-pressure nitrogen seat leakage testing at 80–100 PSI ensuring zero bubble bypass. Shipments include EN 10204 Type 3.1 Material Test Certificates (MTCs), raw material chemical/mechanical test reports, and pressure verification records.
