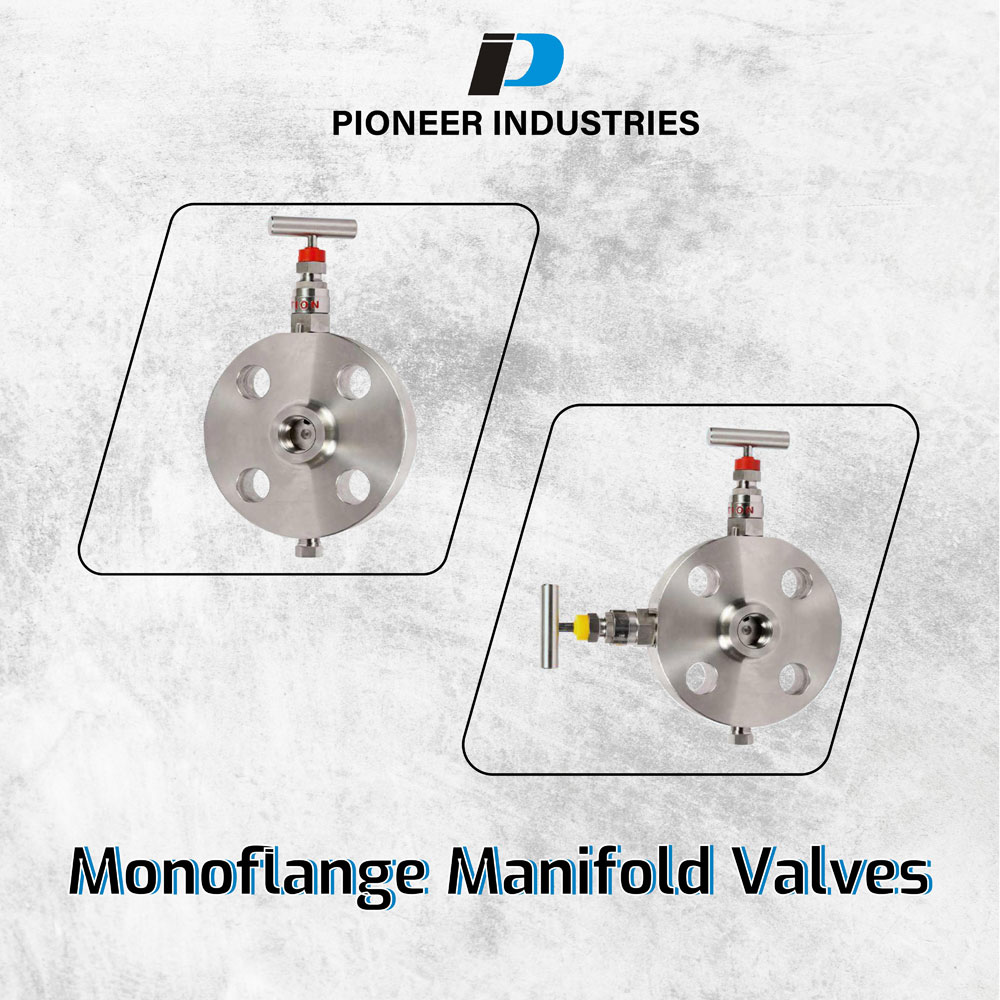

Monoflange Manifolds Valves manufacturer, supplier, and exporter in India

A Monoflange Manifold Valve is a compact, process-to-instrument isolation assembly engineered within a single one-piece forged wafer flanged body. It integrates primary isolation, secondary isolation, and vent/bleed needle valves directly into one slender block. Designed to bolt directly onto ASME B16.5 pipeline process flanges, a monoflange replaces bulky legacy hook-ups that historically demanded separate flanged gate/ball valves, spool pieces, nipple fittings, and external instrument manifolds. By consolidating these functions into a single wafer flange, it eliminates multiple flanged gasket interfaces, drastically reduces potential fugitive emission pathways, and provides unparalleled structural integrity under severe pipeline vibration.

Pioneer Industries manufactures Monoflange valves in two core internal flow schemes: (1) Single Block & Bleed (SBB / BB), featuring one primary isolate valve and one vent valve, specified for non-critical, low-hazard utility pipelines; (2) Double Block & Bleed (DBB), featuring two in-line isolation valves with a central bleed needle valve positioned between them. The DBB architecture is strictly mandated across upstream oil and gas, sour gas production, and petrochemical refining to achieve certified zero-energy positive isolation. In DBB mode, if the primary valve allows any micro-seepage, the fluid is safely diverted through the vent valve into a drain or flare header, preventing pressure build-up against the secondary valve and allowing maintenance crews to safely service or calibrate transmitters under live line pressure.

Pioneer Industries offers Monoflange valves equipped with Outside Screw and Yoke (OS&Y) bonnets for the primary isolate stage. In an OS&Y bonnet, the operating stem threads are positioned entirely outside the pressure boundary and above the packing gland, isolating them from corrosive process media, particulates, and extreme pipeline temperatures. This prevents thread galling, acid erosion, and lubricant washout. Furthermore, OS&Y bonnets provide immediate visual position indication (open vs. closed) and incorporate a precision back-seating stem shoulder that prevents catastrophic stem blowout under excessive pressure surges.

Pioneer Monoflanges are manufactured fully compliant with ASME B16.5, ASME B16.34, and API 6A. Nominal inlet flange sizes range from 1/2″ (DN 15) to 3″ (DN 80). Pressure ratings cover ASME Class 150, 300, 600, 900, 1500, and 2500, as well as API 6A pressure classes up to 10,000 PSI. Flange face finishes include Raised Face (RF) with smooth or spiral serrated phonographic finish (125–250 Ra AARH per ASME B16.5) and Ring Type Joint (RTJ) octagonal grooves for high-pressure cryogenic, subsea, and offshore process lines.

Conventional multi-valve instrument piping assemblies typically weigh between 20 kg and 40 kg and create a cantilever overhang exceeding 400 mm from the pipeline tap. Under cyclic plant vibration, this mechanical lever arm induces high bending fatigue stresses, frequently causing weld cracks and flanged gasket leaks. A Pioneer Industries Monoflange reduces installed weight by over 80% (typically 3.5 kg to 7.0 kg) and shortens the center of gravity overhang to less than 75 mm. This eliminates the need for external support bracing, minimizes mechanical vibration stress, and satisfies strict ISO 15848-1 Class AH and TA-Luft fugitive emission limits by removing up to four bolted flanged gasket connections.

Our standard Monoflange bodies are precision hot-forged from ASTM A182 F316 / F316L dual-certified stainless steel. For severe marine, offshore, and corrosive chemical applications, we manufacture Monoflanges in Duplex 2205 (ASTM A182 F51 / UNS S31803), Super Duplex 2507 (ASTM A182 F53 / UNS S32750), Hastelloy C276, Inconel 625/825, Monel 400, and Titanium Gr. 2. All sour service valves comply fully with NACE MR0175 / ISO 15156 and NACE MR0103, featuring controlled hardness (< 22 HRC), solution annealing, and 100% Positive Material Identification (PMI).

The instrument connection is standardly supplied with 1/2″ Female NPT (ANSI/ASME B1.20.1) threads or flanged directly to mate with differential pressure transmitters at standard 54 mm (2-1/8″) center-to-center dimensions conforming to DIN 19213 / IEC 61518. The vent and bleed ports are standardly threaded 1/4″ Female NPT (optional 1/2″ NPT) and supplied complete with a heavy-duty ASTM A479 SS316 hex-head blanking plug for secondary environmental containment.

Pioneer Industries Monoflange valves are tested and certified fire-safe in accordance with API 607 and ISO 10497 standards. Valve stems feature high-density die-formed flexible Grafoil (pure flexible graphite) packing rings combined with secondary metal-to-metal bonnet seals. In the event of an external plant fire where polymer seals disintegrate, the Grafoil packing and metal seats maintain pressure containment up to +550°C (+1022°F), preventing hazardous process fluids from fueling the blaze.

Every individual Monoflange valve manufactured by Pioneer Industries undergoes 100% factory pressure testing in Mumbai in accordance with API 598, ASME B16.34, and BS EN 12266-1. Testing includes hydrostatic shell testing at 1.5 times the rated ASME working pressure and high-pressure pneumatic seat testing at 1,000 PSI with dry nitrogen gas to confirm zero-bubble shutoff. Deliveries are accompanied by authentic EN 10204 Type 3.1 Material Test Certificates, Ultrasonic Testing (UT) / Dye Penetrant (DPI) reports, and PMI chemical analysis records.

Pioneer Industries maintains an extensive ready inventory of pre-machined forged valve blanks in SS316/316L, Duplex 2205, and Super Duplex 2507 at our Mumbai manufacturing facility. Supported by multi-axis CNC machines and automated testing stations, we execute customized orders with rapid turnaround and fast-track dispatch. We export directly to leading EPC contractors, offshore operators, and chemical refineries across more than 85 countries worldwide, backed by ISPM-15 export wooden packaging and complete customs documentation.
