Are you looking for superior quality Stainless Steel Double Ferrule Male Elbow Fittings exporter and suppliers? Quick delivery and dispatch available.
Buy best price high-quality, corrosion resistant Stainless Steel Double Ferrule Male Elbow, Stainless Steel Double Ferrule Male Elbow Ferrule Fittings, Stainless Steel Double Ferrule Male Elbow Compression Fittings, Stainless Steel Stainless Steel Double Ferrule Male Elbow Fittings, SS 304 Stainless Steel Double Ferrule Male Elbow, SS 316 Stainless Steel Double Ferrule Male Elbow Fittings, Stainless Steel Fittings, SS Pipe Fittings, Flanges & Fittings, Forged Fittings from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.
At Pioneer Industries, we offer these Industrial Stainless Steel Double Ferrule Male Elbow having utmost functionality for your required applications. We are a manufacturer, supplier of Stainless Steel Double Ferrule Male Elbow and India’s leading Stainless Steel Double Ferrule Male Elbow Exporters in Mumbai.
We are India’s one of the leading Stainless Steel Double Ferrule Male Elbow manufacturers and exporters to more than 85 countries exporting and manufacturing on a large scale. All size supply maintains a massive inventory of Stainless Steel Double Ferrule Male Elbow, with all standard sizes and numerous styles available.
Stainless Steel Double Ferrule Male Elbow is manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the Stainless Steel Double Ferrule Male Elbow are available in both metric and imperial sizes. Various materials, material grades, and coatings/plating are available. We’ve got the right product for your needs.
To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

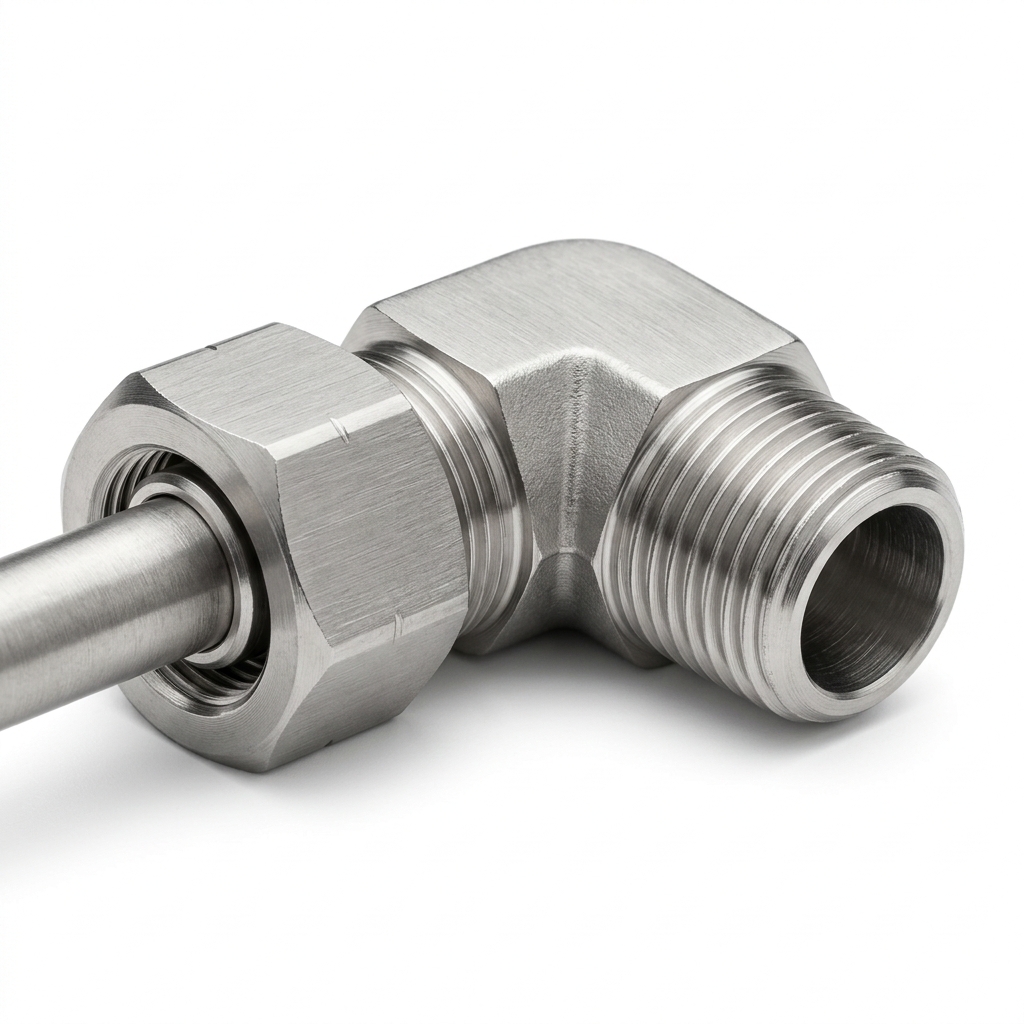

Stainless Steel Double Ferrule Male Elbow is a male pipe elbow used to connect fractional tube to female tapered pipe thread.
Material of Construction: Stainless Steel, SS 304, SS 316, etc.
Materials conforming to NACE MR 01-75 is available on specific requests.
Sizes: 1/8″ to 1″ having various connecting thread profiles like NPT, BSPP & BSPT in Branch Connections, Straight Connections, Tee and Cross Connections in Male Thread Connections, Female Thread Connections, Male – Female Thread Connections, etc.
Explore full engineering dimensional configurations for Metric (mm) and Imperial / Fractional (Inch) Stainless Steel Double Ferrule Male Elbow. Sourced and manufactured according to ASME B31.3 and international instrumentation standards.
| Part No. | Tube O.D. T mm | P (NPT) | E mm | h mm | H mm | F | G | l | L | L 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPME-03-02 | 3 | 1/8 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 17.0 | 23.6 | 17.8 |
| MPME-03-04 | 3 | 1/4 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 18.0 | 24.6 | 23.4 |
| MPME-04-02 | 4 | 1/8 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 | 18.8 |
| MPME-04-04 | 4 | 1/4 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 | 23.4 |
| MPME-06-02 | 6 | 1/8 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 18.8 |
| MPME-06-04 | 6 | 1/4 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 23.4 |
| MPME-06-06 | 6 | 3/8 | 4.8 | 17.5 | 14 | 15.3 | 17.7 | 22.4 | 29.8 | 26.2 |
| MPME-06-08 | 6 | 1/2 | 4.8 | 20.6 | 14 | 15.3 | 17.7 | 24.4 | 31.8 | 33.0 |
| MPME-08-02 | 8 | 1/8 | 4.8 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 19.8 |
| MPME-08-04 | 8 | 1/4 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 24.4 |
| MPME-08-06 | 8 | 3/8 | 6.4 | 17.5 | 16 | 16.2 | 18.6 | 23.9 | 31.4 | 28.5 |
| MPME-08-08 | 8 | 1/2 | 6.4 | 20.6 | 16 | 16.2 | 18.6 | 25.1 | 32.6 | 33.0 |
| MPME-10-02 | 10 | 1/8 | 4.8 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 23.6 |
| MPME-10-04 | 10 | 1/4 | 7.1 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 28.2 |
| MPME-10-06 | 10 | 3/8 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 25.9 | 31.5 | 28.2 |
| MPME-10-08 | 10 | 1/2 | 7.9 | 20.6 | 19 | 17.2 | 19.5 | 25.9 | 33.5 | 33.0 |
| MPME-12-02 | 12 | 1/8 | 4.8 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 23.6 |
| MPME-12-04 | 12 | 1/4 | 7.1 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 28.2 |
| MPME-12-06 | 12 | 3/8 | 9.5 | 20.6 | 22 | 22.8 | 22.00 | 25.9 | 36.0 | 28.2 |
| MPME-12-08 | 12 | 1/2 | 9.5 | 20.6 | 22 | 22.8 | 22.00 | 29.7 | 36.0 | 33.0 |
| MPME-12-12 | 12 | 3/4 | 9.5 | 27.0 | 22 | 22.8 | 22.00 | 27.9 | 39.8 | 36.8 |
| MPME-16-06 | 16 | 3/8 | 9.5 | 25.4 | 25 | 24.4 | 22.00 | 27.9 | 38.0 | 30.2 |
| MPME-16-08 | 16 | 1/2 | 11.9 | 25.4 | 25 | 24.4 | 22.00 | 29.7 | 38.0 | 35.1 |
| MPME-16-12 | 16 | 3/4 | 12.7 | 27.0 | 25 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-18-08 | 18 | 1/2 | 11.9 | 27.0 | 30 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-18-12 | 18 | 3/4 | 15.1 | 27.0 | 30 | 24.4 | 22.00 | 29.7 | 39.8 | 36.8 |
| MPME-20-08 | 20 | 1/2 | 11.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-20-12 | 20 | 3/4 | 15.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-22-12 | 22 | 3/4 | 15.9 | 31.8 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 41.7 |
| MPME-22-16 | 22 | 1 | 18.3 | 36.0 | 32 | 26.0 | 22.00 | 34.5 | 44.6 | 46.5 |
| MPME-25-12 | 25 | 3/4 | 15.9 | 36.0 | 38 | 31.3 | 26.5 | 36.8 | 49.1 | 41.7 |
| MPME-25-16 | 25 | 1 | 21.8 | 36.0 | 38 | 31.3 | 26.5 | 36.8 | 49.1 | 46.5 |
| Part No. | Tube O.D. T in | P (NPT) | E Min | h in | H in | F | G | l | L | L 1 |
|---|---|---|---|---|---|---|---|---|---|---|
| IPME-02-02 | 1/8 | 1/8 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.30 | 24.91 | 18.90 |
| IPME-02-04 | 1/8 | 1/4 | 2.28 | 1/2 | 7/16 | 12.70 | 15.24 | 18.30 | 24.91 | 23.36 |
| IPME-03-02 | 3/16 | 1/8 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 18.79 | 25.40 | 18.79 |
| IPME-03-04 | 3/16 | 1/4 | 3.04 | 1/2 | 1/2 | 13.71 | 16.00 | 18.79 | 25.40 | 23.36 |
| IPME-04-02 | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.10 | 26.47 | 19.10 |
| IPME-04-04 | 1/4 | 1/4 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 19.81 | 27.18 | 23.87 |
| IPME-04-06 | 1/4 | 3/8 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 22.35 | 29.71 | 28.40 |
| IPME-04-08 | 1/4 | 1/2 | 4.82 | 13/16 | 9/16 | 15.24 | 17.78 | 24.60 | 31.97 | 35.10 |
| IPME-05-02 | 5/16 | 1/8 | 4.82 | 9/16 | 5/8 | 16.25 | 18.54 | 21.33 | 28.70 | 19.81 |
| IPME-05-04 | 5/16 | 1/4 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 22.40 | 29.77 | 24.50 |
| IPME-05-06 | 5/16 | 3/8 | 6.35 | 11/16 | 5/8 | 16.25 | 18.54 | 23.11 | 30.48 | 28.40 |
| IPME-06-02 | 3/8 | 1/8 | 4.82 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 | 20.60 |
| IPME-06-04 | 3/8 | 1/4 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 23.11 | 30.48 | 25.40 |
| IPME-06-06 | 3/8 | 3/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 23.87 | 31.24 | 28.44 |
| IPME-06-08 | 3/8 | 1/2 | 7.11 | 13/16 | 11/16 | 16.76 | 19.30 | 23.80 | 31.42 | 33.02 |
| IPME-06-12 | 3/8 | 3/4 | 7.11 | 1-1/16 | 11/16 | 16.76 | 19.30 | 29.71 | 37.08 | 36.83 |
| IPME-08-04 | 1/2 | 1/4 | 7.11 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 28.30 |
| IPME-08-06 | 1/2 | 3/8 | 9.65 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 28.30 |
| IPME-08-08 | 1/2 | 1/2 | 10.41 | 13/16 | 7/8 | 22.86 | 21.84 | 25.90 | 36.06 | 33.02 |
| IPME-08-12 | 1/2 | 3/4 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-10-06 | 5/8 | 3/8 | 9.65 | 15/16 | 1 | 24.38 | 21.84 | 26.90 | 37.06 | 29.40 |
| IPME-10-08 | 5/8 | 1/2 | 11.93 | 15/16 | 1 | 24.38 | 21.84 | 26.90 | 37.06 | 34.00 |
| IPME-10-12 | 5/8 | 3/4 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-12-08 | 3/4 | 1/2 | 11.93 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 | 37.00 |
| IPME-12-12 | 3/4 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 29.71 | 39.87 | 36.83 |
| IPME-14-12 | 7/8 | 3/4 | 15.74 | 1-1/4 | 1-1/4 | 25.90 | 21.84 | 34.54 | 44.70 | 41.65 |
| IPME-16-12 | 1 | 3/4 | 15.74 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 42.20 |
| IPME-16-16 | 1 | 1 | 22.35 | 1-27/64 | 1-1/2 | 31.24 | 26.41 | 36.83 | 49.02 | 46.70 |
| Material Group | Standard Specification & Codes | Available Grades |
|---|---|---|
| Austenitic Stainless Steel (300 Series) | ASTM A276, ASTM A479, ASME SA479, ASME SA/A403, SA/A774 WP-S, WP-W, WP-WX | SS 304 SS 304L SS 304H SS 304LN SS 316 SS 316L SS 316H SS 316LN |
| Sour Gas (H2S) Service | NACE MR0175 / ISO 15156, NACE MR0103 | SS 316 / 316L (Hardness ≤ 22 HRC) Super Duplex 2507 Inconel 625 / 825 |
| High Alloys & Exotic Metals | ASTM B164, ASTM B564, ASTM B574 | Monel 400 Hastelloy C-276 Duplex 2205 Titanium Gr. 2 |
| Thread Types & Standards | ANSI/ASME B1.20.1 (NPT), ISO 7/1 (BSPT), ISO 228 (BSPP), SAE J1926 (Straight) | NPT Male BSPT Male BSPP Male with O-ring/Washer Metric Male |
Customization Available: Looking for something specific? Pioneer Industries manufactures tailor-made Stainless Steel Double Ferrule Male Elbow in custom materials, non-standard threads, and high-pressure schedule connections. Contact us at +91 9821023876 or email inquiry@pioneerfitting.com.
Stainless Steel Double Ferrule Fittings find use in a variety of industrial applications, including:
These Fittings find application in processing equipment such as tanks, drilling rigs, and pumps, and used in the oil and gas industries giving stable performance in high stress and corrosive conditions.
Scaffolding and other support structures requires a variety of these Fittings to safeguard and guarantee the stability of structure during construction.
In chemical refineries, these Fittings are made using corrosion resistant high performance materials, such as stainless steel, tool alloys, and exotic metals and find use in machineries such as heat exchangers, chemical tanks, and processing systems.
Fittings installed in the marine industry necessitate excellent corrosion resistance to withstand the extended periods of exposure to saltwater that marine ramps, marine decks, bulkheads, and tanks experience.
Fittings are used to assemble a wide range of vehicles, including commercial vehicles like trucks, passenger vehicles like cars, airplanes, and specialized automobile equipment.
Distinctive applications include use in exhaust systems, electrical equipment, motors and pumps, and storage containers. These Fittings for the power generation industry are made of corrosion resistant and high strength materials such as stainless steel, aluminium, copper, nickel alloys, and other steel alloys.
In the agricultural industry, these Fittings are used in field irrigation and filtration systems, and other farming equipment, drying units, buildings, and grain bins.
Military Fittings are manufactured and functionally designed to withstand extreme temperatures, corrosive compounds, and high stress environments and find applications like include equipment motors, heat exchangers, and engines, and processing equipment.
Pioneer Industries’ Stainless Steel Double Ferrule Male Elbow are widely used in numerous industries like:
