Product Range – Stainless Steel Gauge Root Valves

Stainless Steel Gauge Root Valves manufacturer, supplier, and exporter in India

Are you looking for superior quality Stainless Steel Gauge Root Valves exporter and suppliers? Get Quick delivery and dispatch available. Buy best price high-quality, corrosion resistant Stainless Steel Gauge Root valves, Gauge Valves, Gauge Root Valves, Multiport Gauge Valve, Gauge Bleed Valve, Pipe Fittings, SS Valves, Stainless Steel Gauge Root valves, Stainless Steel Short Gauge Root Valves, Stainless Steel Lagging Extension Gauge Root Valves from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

ENQUIRE NOW WHATSAPP
Stainless Steel Gauge Root Valves
85+
Countries Served
1/2″ NPT
Standard Multiport Size
6,000 PSI
Working Pressure Rating
Up to 1000°F
Max Temp with Grafoil
Short & Long
Lagging Extension Options
01 — Overview

Buy best price high-quality, corrosion resistant Stainless Steel Gauge Root valves, Gauge Valves, Gauge Root Valves, Multiport Gauge Valve, Gauge Bleed Valve, Pipe Fittings, SS Valves, Stainless Steel Gauge Root valves, Stainless Steel Short Gauge Root Valves, Stainless Steel Lagging Extension Gauge Root Valves from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

At Pioneer Industries, we offer these Industrial Stainless Steel Gauge Root valves having utmost functionality for your required applications. We are manufacturer, supplier of Stainless Steel Gauge Root valves and India’s leading Stainless Steel Gauge Root valves Exporters in Mumbai.

Global Supply

Pioneer Industries manufacturing and exporting high quality Stainless Steel Gauge Root Valves worldwide.

We are India’s one of the leading Stainless Steel Gauge Root valves manufacturers and exporters to more than 85 countries exporting and manufacturing on a large scale. All size supply maintains a massive inventory of Stainless Steel Gauge Root valves, with all standard sizes and numerous styles available.

Stainless Steel Gauge Root valves are manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the Stainless Steel Gauge Root valves are available in various material grades, and coatings/plating’s are available. We’ve got the right product for your needs.

PDF Catalogue
Catalogue
Download the Stainless Steel Gauge Root Valves PDF

To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

CALL 9821023876 SEND ENQUIRY
02 — Product Detail

Stainless Steel Gauge Root Valves Supplier

Gauge Root Valves are designed for connecting system impulse lines & transmitters. These manifolds consist of Single valve configuration which allows for easy isolation, calibration, block and bleed for gauges, pressure switches and static pressure transmitting instruments. These valves are rugged in construction to withstand high pressures and temperatures. The valves are rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE Packing. For a Higher temperature Grafoil Packing is used. These valves combine the functions of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing the number of fittings and space required for installation.

We at Pioneer Industries manufacture a wide variety of Stainless Steel Gauge Root valves which finds applications in numerous industries like Oil & Gas Industries, Chemical Industry, Nuclear Energy Sector, Petroleum Industries, Defence Industry, and Aerospace Industry. Available in numerous dimensions and grades. Pioneer Industries manufactures and exports high-quality industrial Stainless Steel Gauge Root valves.

Features of Stainless Steel Gauge Root Valves:

  • All-In-One Block & Bleed Integration: Combines the functions of a pipe tee, calibration valve, and isolation valve into a single unit.
  • Multiport Outlet Versatility: Three 1/2″ NPT female outlet ports accommodate pressure gauge, bleed plug, and calibration pump simultaneously.
  • High Pressure & Temperature Capability: Rated for pressures as high as 6000 PSI at 200°F or 4000 PSI at 500°F with PTFE packing; up to 1000°F with Grafoil packing.

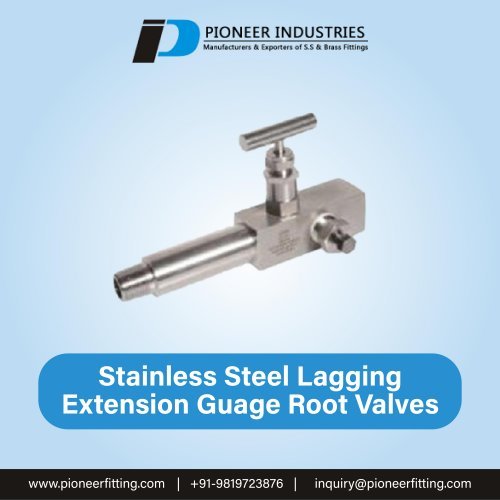

  • Lagging Extension Availability: Extended body lengths allow clear installation outside thermal pipe lagging and insulated pipe cladding.
  • Non-Rotating Stem Tip: Hardened 316/17-4 PH vee tip applies pure axial force, preventing seat galling and ensuring bubble-tight shut-off.
  • Reduced Leak Paths & Labor: Replaces up to six separate piping nipples and fittings, drastically reducing installation labor and leak points.
  • Sour Gas Compliance: Precision forged in SS 316/316L with full compliance to NACE MR0175 / ISO 15156 criteria.
+ + + +
Specification

Connections: Process Inlet 1/2″ NPT Male or Female; Instrument Outlets (3 ports) 1/2″ NPT Female. Material of Construction: Forged Stainless Steel ASTM A182 F316 / Bar Stock A479 316. Working Pressure: 6000 PSI CWP. Packing: PTFE (up to 200°C) or High-Temp Grafoil (up to 538°C). Testing: 100% factory hydrostatic and pneumatic seat tested per API 598.

03 — Applications

Applications/Uses of Stainless Steel Gauge Root Valves

Stainless Steel Gauge Root Valves find use in a variety of industrial applications, including:

01

Steam boiler headers –

Installed directly on high-temperature, high-pressure steam distribution mains for pressure gauge and transmitter isolation.

02

Refining & Petrochemicals –

Provides block and bleed isolation for static pressure sensors on distillation columns, hydrotreaters, and hydrocarbon lines.

03

Oil and gas production –

Specified on offshore wellhead christmas trees, separator skids, and gas compression modules for safe instrument calibration.

04

Chemical processing plants –

Corrosion-resistant SS 316 construction safely handles aggressive chemicals, acids, and corrosive vapors on process reactors.

05

Thermal power plants –

Grafoil-packed valves withstand extreme temperature cycling on main steam piping, reheat circuits, and boiler feed lines.

06

Pulp and paper mills –

Installed on digester pressure taps, liquor recovery lines, and drying cylinder steam supplies requiring rugged root valves.

07

Nuclear energy sector –

Meets stringent leak-tight containment standards for secondary steam cycles and reactor coolant auxiliary instrument loops.

08

Defence and Aerospace –

Used on rocket propulsion test stands, naval propulsion steam telemetry, and high-pressure fluid monitoring equipment.

04 — Industries

Applications Industries of Stainless Steel Gauge Root Valves

Pioneer Industries’ Stainless Steel Gauge Root Valves are widely used in numerous industries like:

+ Pharmaceutical Equipment
+ Chemical Equipment
+ Sea Water Equipment
+ Heat Exchangers
+ Condensers
+ Pulp and Paper Industry
+ Power Generation
+ Gas Processing
+ Aerospace Industry
+ Nuclear Energy Sector
+ Off-Shore Oil Drilling
+ Oil & Gas Industries
+ Chemical Industry
+ Petroleum Industries
+ Defence Industry
05 — Range

Types of Stainless Steel Gauge Root Valves offered by Pioneer Industries

06 — FAQs

Frequently Asked Questions – Stainless Steel Gauge Root Valves

Explore technical engineering insights regarding multiport gauge valves, insulation lagging extensions, calibration procedures, and safety ratings.

A Stainless Steel Gauge Root Valve (also known as a Multiport Gauge Valve or Gauge Isolation/Bleed Valve) is an instrumentation block-and-bleed valve designed to connect pressure gauges, differential pressure transmitters, and pressure switches directly to process headers and impulse lines. It integrates the functionality of a pipe tee, process isolation valve, and calibration/bleed port into a single compact, one-piece forged body. This configuration allows technicians to isolate the pressure instrument from process line pressure, safely vent trapped fluid via the bleed port, and attach field calibration equipment without removing the gauge or disturbing primary piping.

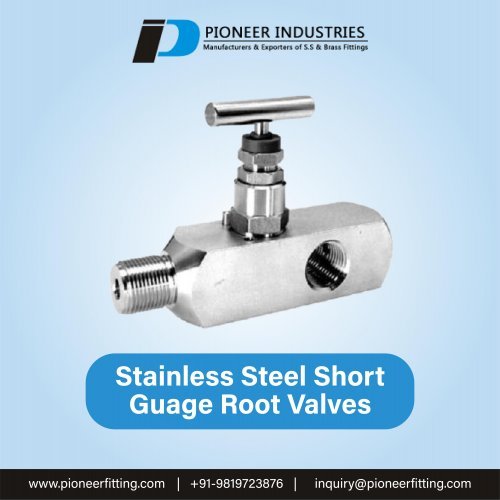

A Short Pattern Gauge Root Valve features a compact body designed for bare process piping, uninsulated vessels, and space-constrained instrument manifolds. In contrast, an Extended Lagging (or Long Body) Gauge Root Valve features an extended inlet body shank (typically 4″ or 6″ long). This extension projects the valve bonnet, handwheel, and instrument outlet ports well beyond high-temperature or cryogenic thermal pipe insulation (lagging), ensuring easy maintenance access without damaging or cutting into pipeline cladding and insulation.
Our gauge root valves typically incorporate a 1/2″ NPT male or female process inlet paired with three 1/2″ NPT female outlet ports. This versatile multiport geometry allows: (1) One port for mounting the primary pressure gauge or transmitter; (2) One port for installing a bleed/vent valve or vent plug to safely release pressure; and (3) One port for attaching auxiliary test pressure gauges, calibration pumps, or dampening siphon pigtails, eliminating external tees and fittings.
Pioneer Industries Gauge Root Valves are engineered for severe process conditions. With standard PTFE gland packing, valves are rated for working pressures up to 6,000 PSI (414 bar) at temperatures up to 200°F (93°C) and 4,000 PSI at 500°F (260°C). When equipped with optional high-temperature Grafoil (flexible graphite) packing, they operate continuously at temperatures up to 1,000°F (538°C) in superheated steam, thermal oil, and refinery furnace lines.
The valve stem incorporates a two-piece design with a hardened, non-rotating spherical or conical vee tip. As the handwheel is turned to close the valve, the stem advances axially, but once the tip contacts the body seat, rotational motion ceases and pure axial thrust is applied. This completely eliminates rotational friction and scrubbing between the stem tip and body seat, preventing galling, seat wire-drawing, and ensuring repeatable, bubble-tight metal-to-metal shut-off.
To safely calibrate an on-line instrument: (1) Rotate the main handwheel clockwise to close the isolation needle stem, blocking process line pressure; (2) Slowly crack open the bleed plug or bleed screw installed in the side outlet port to depressurize the gauge cavity to zero psig; (3) Connect a certified external calibration pump and reference gauge to the second outlet port; (4) Introduce calibration pressure while observing the transmitter output; (5) Upon completion, vent the test pressure, retighten the bleed screw, and slowly open the main isolation stem to return the instrument to service.
Standard bodies are manufactured from ASTM A182 F316 / F316L forged stainless steel or ASTM A479 Grade 316 / 316L bar stock for maximum tensile strength and resistance to pitting and crevice corrosion. Wetted internal components (stem, tip, packing gland) are machined from heat-treated SS 316 or hardened 17-4 PH stainless steel. Full compliance with NACE MR0175 / ISO 15156 sour gas hardness limits is standard for upstream oil and gas installations.
Fabricating a gauge root connection from separate pipe nipples, tees, needle valves, and weld couplings introduces multiple threaded and welded joints, each representing a potential fugitive emission leak path and stress concentration point. Pioneer's one-piece forged gauge root valve integrates all functions into a monolithic pressure-containing body, reducing envelope dimensions by over 60%, cutting field installation time, and completely eliminating weld-heat affected zones.
Gauge Root Valves are widely deployed across high-pressure steam boiler drums, steam turbine header tapping points, refinery distillation column level instruments, natural gas compressor station impulse lines, chemical reactor pressure transmitters, and offshore oilfield separator vessels.
Every production lot undergoes 100% hydrostatic shell testing at 1.5 times rated working pressure (9,000 PSI) and pneumatic seat leakage testing at 80–100 PSI with dry nitrogen in accordance with API 598 and MSS SP-99 standards. Certified EN 10204 Type 3.1 Mill Test Certificates (MTCs) detailing chemical melt heats, mechanical tensile properties, Rockwell hardness, and pressure test results are supplied with every order.
07 — Enquiry

Contact Pioneer Industries experts for detailed information

about your requirement to select the right products for your application needs!

Do you have any questions or need help with our services and products? Submit an Enquiry Form request or Call us at 9821023876. Feel free to get in touch!
