Product Range – Stainless Steel Integrated Bonnet Needle Valve

Stainless Steel Integrated Bonnet Needle Valve manufacturer, supplier, and exporter in India

Are you looking for superior quality Stainless Steel Integrated Bonnet Needle Valve exporter and suppliers? Get Quick delivery and dispatch available. Buy best price high-quality, corrosion resistant Stainless Steel Integrated Bonnet Needle Valves, Stainless Steel Needle Valve, Stainless valves, Needle Valves, Integral-Bonnet Needle Valves, Stainless Steel Integrated Bonnet Needle Valve, Stainless Steel Integrated Bonnet Needle Valve Male to female, Stainless Steel Integrated Bonnet Needle Valve Female to Female, Stainless Steel Integrated Bonnet Needle Valve Tube to tube from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

ENQUIRE NOW WHATSAPP
Stainless Steel Integrated Bonnet Needle Valve
85+
Countries Served
1/8″–1″
Port Size Range
Up to 10,000 PSI
Working Pressure Rating
Compact
Integral Bonnet Design
16 RMS
Mirror Burnished Stem
01 — Overview

Buy best price high-quality, corrosion resistant Stainless Steel Integrated Bonnet Needle Valves, Stainless Steel Needle Valve, Stainless valves, Needle Valves, Integral-Bonnet Needle Valves, Stainless Steel Integrated Bonnet Needle Valve, Stainless Steel Integrated Bonnet Needle Valve Male to female, Stainless Steel Integrated Bonnet Needle Valve Female to Female, Stainless Steel Integrated Bonnet Needle Valve Tube to tube from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

At Pioneer Industries, we offer these Industrial Stainless Steel Integrated Bonnet Needle Valves having utmost functionality for your required applications. We are manufacturer, supplier of Stainless Steel Integrated Bonnet Needle Valves and India’s leading Stainless Steel Integrated Bonnet Needle Valves Exporters in Mumbai.

Global Supply

Pioneer Industries manufacturing and exporting high quality Stainless Steel Integrated Bonnet Needle Valve worldwide.

We are India’s one of the leading Stainless Steel Integrated Bonnet Needle Valves manufacturers and exporters to more than 85 countries exporting and manufacturing on a large scale. All size supply maintains a massive inventory of Stainless Steel Integrated Bonnet Needle Valves, with all standard sizes and numerous styles available.

Stainless Steel Integrated Bonnet Needle Valves is manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the Stainless Steel Integrated Bonnet Needle Valves are available in various material grades, and coatings/plating’s are available. We’ve got the right product for your needs.

PDF Catalogue
Catalogue
Download the Stainless Steel Integrated Bonnet Needle Valve PDF

To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

CALL 9821023876 SEND ENQUIRY
02 — Product Detail

Stainless Steel Integrated Bonnet Needle Valve Supplier

Stainless Steel Integrated Bonnet Needle Valves feature an integral screwed bonnet connection with metal to metal or stellated seat for high pressure. Stem threads are precision rolled and hard plated with tip stellated, which prevents galling and significantly extends service life. Features a 2-part stem tip arrangement with packing located below the actuating thread, non-rotating design ensures bubble tight shut-off.

End connections include Male to Female, Female to Female threaded NPT, BSP, ISO, DIN and JIS tapered pipe ends, as well as integral double-ferrule Tube to Tube compression connections. Engineered with a one-piece body without welds. Maximum Working Pressure: 10,000 PSI (400 to 700 bar) at 200°C; 20,000 PSI (700 bar) at 120°C. 100% Factory tested.

We at Pioneer Industries manufacture a wide variety of Stainless Steel Integrated Bonnet Needle Valves which finds applications in numerous industries like Oil & Gas Industries, Chemical Industry, Nuclear Energy Sector, Petroleum Industries, Defence Industry, and Aerospace Industry. Available in numerous dimensions and grades. Pioneer Industries manufactures and exports high-quality industrial Stainless Steel Integrated Bonnet Needle Valves.

Features of Stainless Steel Integrated Bonnet Needle Valve:

  • Integral Screwed Bonnet Connection: Compact one-piece body construction minimizes envelope dimensions and eliminates external body-to-bonnet leak paths.
  • Metal to Metal or Stellated Seat: Provides positive, erosion-resistant shut-off for severe high-pressure hydraulic and gas services.
  • Rolled & Hard Plated Stem Threads: High tensile thread rolling with tip stellated prevents galling and maximizes cycle life.
  • Two-Part Stem Tip Arrangement: Non-rotating lower needle tip applies pure axial downward sealing without rotational scouring.
  • Packing Below Actuating Thread: Isolates thread lubricant from process fluid, preventing lubricant wash-away and chemical thread binding.
  • Versatile End Connections: Female to Female, Male to Female, and integral double-ferrule Tube to Tube ends.
  • One-Piece Weld-Free Body: CNC-machined from solid ASTM A479 316/316L bar stock for superior mechanical safety.
  • Maximum Working Pressure: Rated up to 6,000 PSI and 10,000 PSI (400 to 700 bar) at 200°C.
  • Mirror Finish Stem (16 RMS): Roller burnished to 16 RMS to minimize friction, lower handwheel operating torque, and maximize packing seal longevity.
  • 100% Factory Quality Tested: Hydrostatic shell testing with pure water at 1.5x working pressure and pneumatic nitrogen seat leak testing at 1,200 psig (80 bar).
+ + + +
Specification

Sizes: 1/8″ to 1″ (3mm to 25mm OD tube & pipe threads). End Connections: Female to Female, Male to Female, Tube to Tube (Double Ferrule). Material: ASTM A479 SS 316 / 316L, Duplex 2205, Super Duplex 2507, Hastelloy C-276, Monel 400. Packing: PTFE (up to 200°C) or Grafoil (up to 500°C). Pressure Rating: 6,000 PSI to 10,000 PSI. Standards: API 598, MSS SP-99, ASME B16.34.

03 — Applications

Applications/Uses of Stainless Steel Integrated Bonnet Needle Valve

Stainless Steel Integrated Bonnet Needle Valve find use in a variety of industrial applications, including:

01

Oil and gas –

These Stainless Steel Integrated Bonnet Needle Valve find application in processing equipment such as tanks, drilling rigs, and pumps, and used in the oil and gas industries giving stable performance in high stress and corrosive conditions.

02

Building and Construction –

Scaffolding and other support structures requires variety Stainless Steel Integrated Bonnet Needle Valve to safeguard and guarantee the stability of structure during construction.

03

Chemical refining –

In chemical refineries, Stainless Steel Integrated Bonnet Needle Valve are made using corrosion resistant high performance materials, such as Brass, tool alloys, and exotic metals and find use in machineries such as heat exchangers, chemical tanks, and processing systems.

04

Marine –

Stainless Steel Integrated Bonnet Needle Valve installed in the marine industry necessitate excellent corrosion resistance to withstand the extended periods of exposure to saltwater that marine ramps, marine decks, bulkheads, and tanks experience.

05

Automobile and transportation –

Stainless Steel Integrated Bonnet Needle Valve are used to assemble a wide range of vehicles, including commercial vehicles like trucks, passenger vehicles like cars, airplanes, and specialized automobile equipment.

06

Power generation –

Distinctive applications include use in exhaust systems, electrical equipment, motors and pumps, and storage containers. These Stainless Steel Integrated Bonnet Needle Valve for the power generation industry are made of corrosion resistant and high strength materials.

07

Agriculture –

In the agricultural industry, these valves and fittings are used in field irrigation and filtration systems, and other farming equipment, drying units, buildings, and grain bins.

08

Military –

Military Stainless Steel Integrated Bonnet Needle Valve are manufactured and functionally designed to withstand extreme temperatures, corrosive compounds, and high stress environments and find applications like include equipment motors, heat exchangers, and engines.

04 — Industries

Applications Industries of Stainless Steel Integrated Bonnet Needle Valve

Pioneer Industries’ Stainless Steel Integrated Bonnet Needle Valve are widely used in numerous industries like:

+ Pharmaceutical Equipment
+ Chemical Equipment
+ Sea Water Equipment
+ Heat Exchangers
+ Condensers
+ Pulp and Paper Industry
+ Power Generation
+ Gas Processing
+ Aerospace Industry
+ Nuclear Energy Sector
+ Off-Shore Oil Drilling
+ Oil & Gas Industries
+ Chemical Industry
+ Petroleum Industries
+ Defence Industry
05 — Range

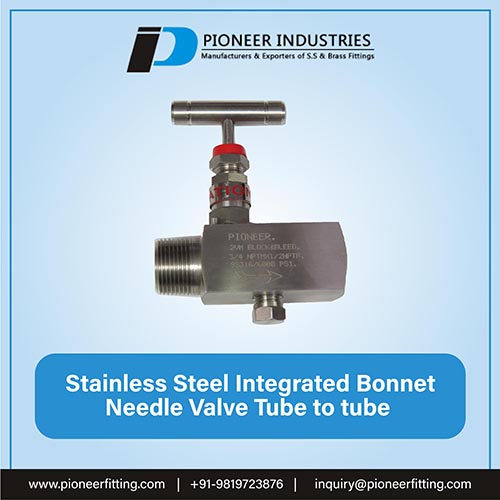

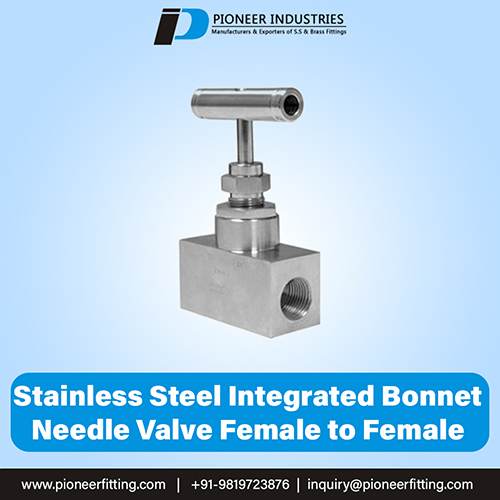

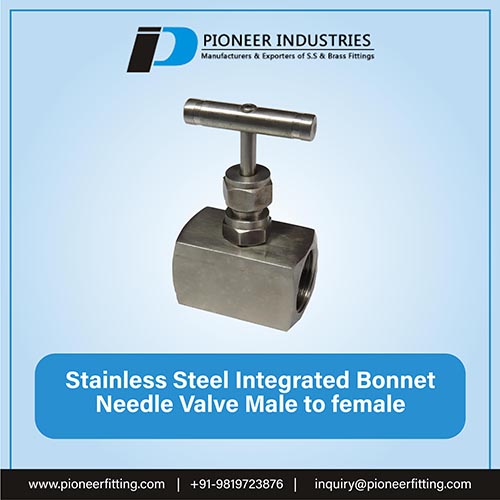

Types of Stainless Steel Integrated Bonnet Needle Valve offered by Pioneer Industries

06 — FAQs

Frequently Asked Questions – Stainless Steel Integrated Bonnet Needle Valve

Expert technical insights covering integral bonnet mechanics, panel mounting advantages, tube-to-tube connections, zero-leakage shut-off, and testing standards.

An Integrated Bonnet (also termed Integral Bonnet or Screwed Bonnet) Needle Valve features a compact one-piece body design where the bonnet threads directly into the valve body cavity or is integrally machined from solid bar stock. This construction eliminates extra external bonnet nuts, union rings, and flanged bolting, resulting in a streamlined, lightweight footprint. While union bonnet valves are specified for extreme pulsating pressures and severe thermal cycling, integrated bonnet needle valves deliver exceptional, reliable performance in compact instrument panels, testing manifolds, and general isolation systems up to 6,000 to 10,000 PSI.
Integrated bonnet needle valves offer a significantly reduced envelope size and up to 35% lower weight compared to union bonnet or bolted bonnet equivalents. The compact body geometry allows high-density valve grouping on instrument control panels, analyzer sampling racks, and hydraulic control consoles where clearance between impulse tubes is extremely tight. Furthermore, Pioneer Industries provides integrated panel-mounting nuts and body threads that allow fast, rigid panel through-hole installation without requiring custom mounting brackets.
Our standard Stainless Steel Integrated Bonnet Needle Valves are rated for working pressures up to 6,000 PSI (414 bar) at 200°C. For heavy-duty industrial instrumentation, we manufacture high-pressure integrated bonnet configurations rated up to 10,000 PSI (700 bar) at 200°C. When equipped with standard virgin PTFE chevron packing, the operating temperature range is -54°C to 232°C (-65°F to 450°F). When fitted with high-temperature Grafoil packing, operating temperatures extend up to 500°C (932°F) for steam and hot thermal oil lines.
In Pioneer Industries Integrated Bonnet Needle Valves, the PTFE or Grafoil gland packing is positioned directly below the actuating screw threads. This critical engineering feature ensures that process fluids (liquids, gases, steam, or corrosive chemicals) never contact the stem threads. The factory thread lubricant remains permanently intact and cannot be washed out, preventing dry friction, thread galling, and valve seizure. Furthermore, process contaminants or grit cannot penetrate into the gland packing, extending packing cycle life by up to three times.
We manufacture integrated bonnet needle valves with three versatile end connection styles: (1) Female to Female threaded ports (NPT, BSPP, BSPT); (2) Male to Female threaded ports; and (3) Tube to Tube integral double-ferrule compression ends in fractional sizes from 1/8″ to 1″ OD and metric sizes from 3mm to 25mm OD. The integral tube fitting ends eliminate the need for separate male pipe-to-tube adapters, reducing potential leak paths by 50% and speeding up installation on impulse tubing.
The stem assembly is engineered as a two-piece mechanism consisting of an upper actuating stem and a lower non-rotating needle tip. As the handwheel is turned clockwise to close the valve, the lower needle tip descends into the orifice seat and instantly ceases rotational motion upon first metal contact. The final torque drives the tip strictly downward with pure axial force. This eliminates the scrubbing, scoring, and galling that occurs with conventional one-piece rotating stems, ensuring bubble-tight Class VI shut-off even after thousands of open/close operations.
Standard PTFE chevron packing is ideal for general chemical, hydraulic, and pneumatic gas service at temperatures from -54°C to 200°C due to its low operating friction, chemical inertness, and smooth handwheel torque. However, for superheated steam loops, boiler blowdown sample lines, thermal fluid systems, and fire-safe process specifications exceeding 200°C up to 500°C, high-density flexible die-formed Grafoil (graphite) packing must be specified to prevent thermal decomposition and packing blow-out.
Pioneer Industries machines integrated bonnet needle valves from high-grade ASTM A479 / A276 Grade 316 / 316L stainless steel bar stock as standard. For severe chemical, marine, and offshore environments, we supply valves manufactured in Duplex 2205 (UNS S31803), Super Duplex 2507 (UNS S32750), Hastelloy C-276, Monel 400, and Alloy 20. For upstream oil and gas sour gas processing containing H2S, valves are heat-treated and certified in full compliance with NACE MR0175 / ISO 15156 hardness and metallurgy requirements.
Every integrated bonnet needle valve is 100% factory tested prior to dispatch in accordance with API 598, MSS SP-99, and ASME B16.34 standards. Quality testing includes a hydrostatic shell pressure test at 1.5 times working pressure (up to 15,000 PSI) with demineralized water and a pneumatic nitrogen seat tightness test at 1,200 psig (80 bar) with zero allowable seat leakage. Optional helium leak detection down to 1 x 10⁻⁹ std cm³/s and EN 10204 Type 3.1 Mill Test Certificates verifying chemical and mechanical compliance are supplied.
For panel mounting, remove the handwheel, thread the panel nut over the bonnet threads through the control panel cutout (clearance hole), and torque the lock nut securely against the panel face before re-attaching the handwheel. During operation, flow should always enter from under the seat (following the body directional flow arrow). In the event of gland weeping over extended service, the external packing bolt can be gently retightened clockwise in 1/8-turn increments while under pressure to compress the chevron packing rings and re-establish a bubble-tight seal without dismantling the valve.
