Product Range – Brass Flare Fittings

Brass Flare Fittings manufacturer, supplier, and exporter in India

Are you looking for superior quality Brass Flare Fittings exporter and suppliers? Get quick delivery and dispatch available. Buy best price high-quality, corrosion resistant Brass Flare Fittings, Brass tube fittings, brass flared tube, Quality Brass Fittings, Flare Fitting Parts, Brass Flare Male Connector, Brass Flare Female Connector, Brass Flare Ball Check, Brass Flare Male Elbow, Brass Flare Female Elbow, Brass Flare 45 deg Male Elbow, Brass Flare Male Branch Tee, Brass Flare Male Run Tee, Brass Flare Union, Brass Flare Union Elbow, Brass Flare Union Tee, Brass Flare Long Union Nut, Brass Flare Short Union Nut, Brass Flare Nut from Pioneer Industries recognized for manufacturing quality-tested products using latest manufacturing equipment at International Industry standards.

ENQUIRE NOW WHATSAPP
Brass Flare Fittings
85+
Countries Served
1/8″–3/4″
Tube OD Range
Up to 5,000 PSI
Working Pressure
4:1
Safety Factor
45° SAE / NPT
Thread Profiles
01 — Overview

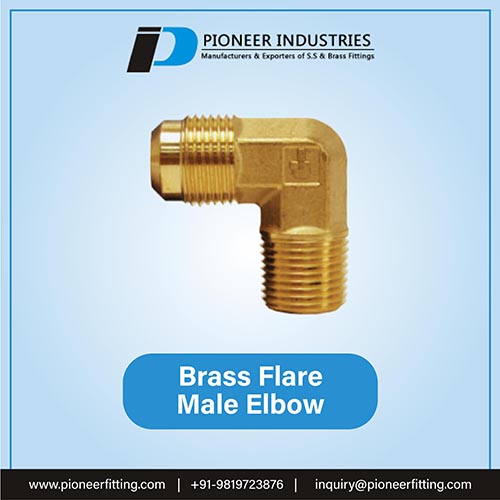

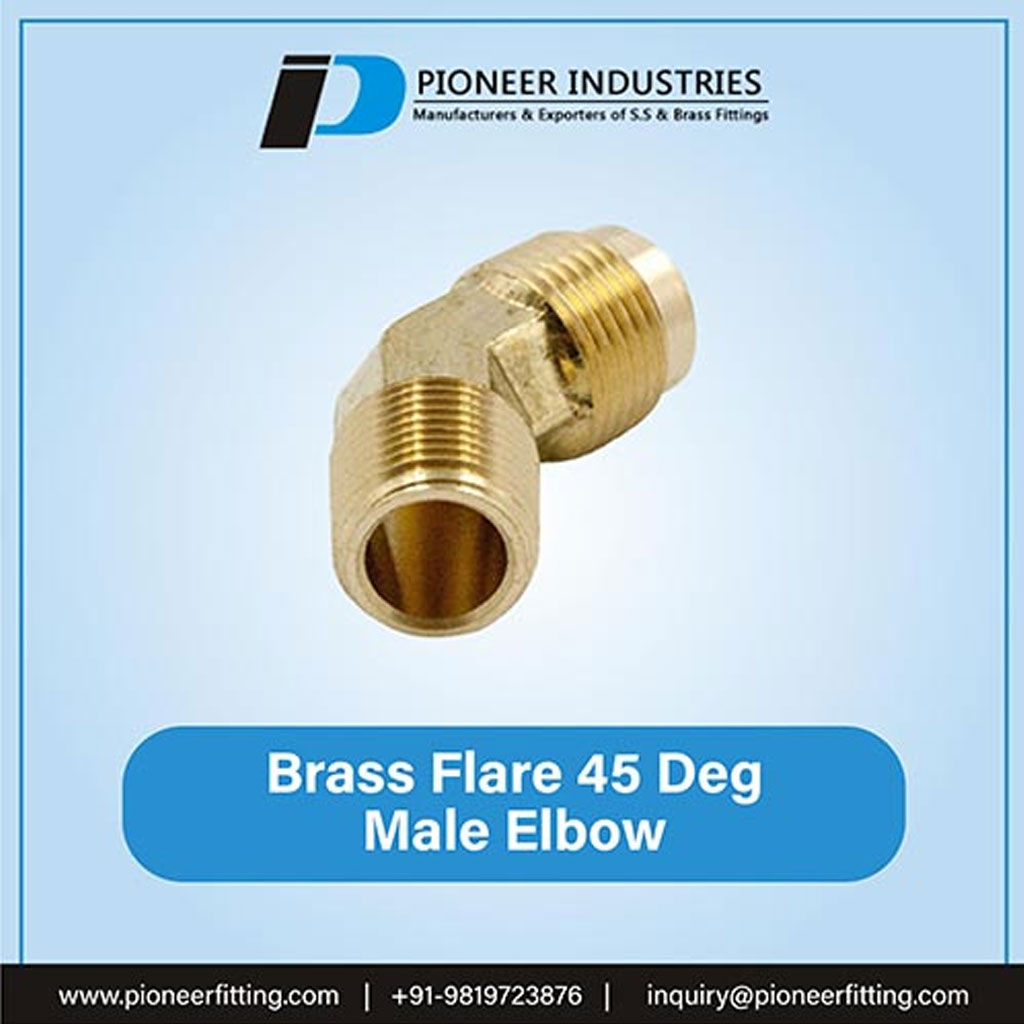

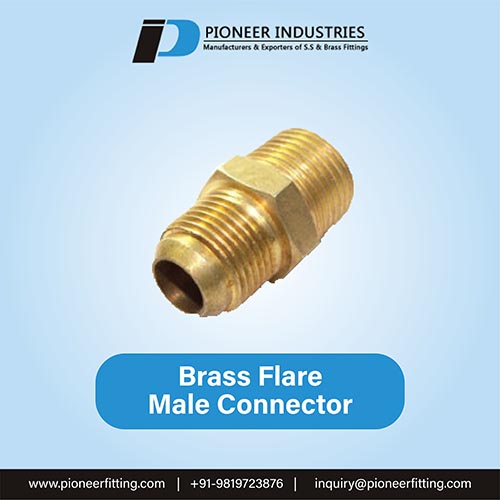

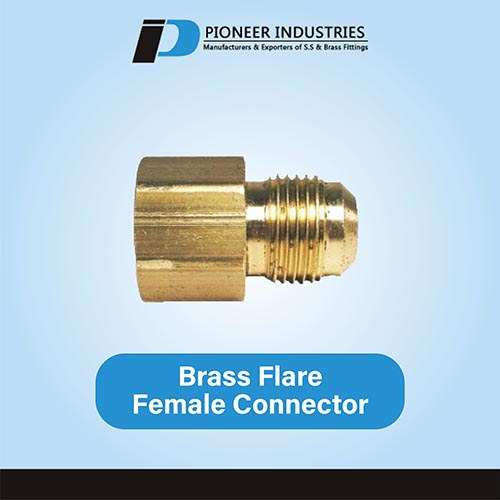

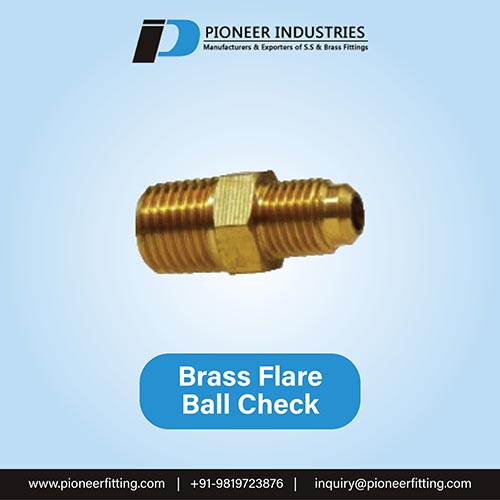

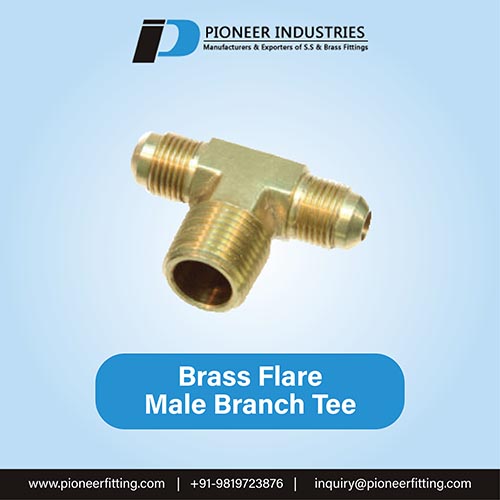

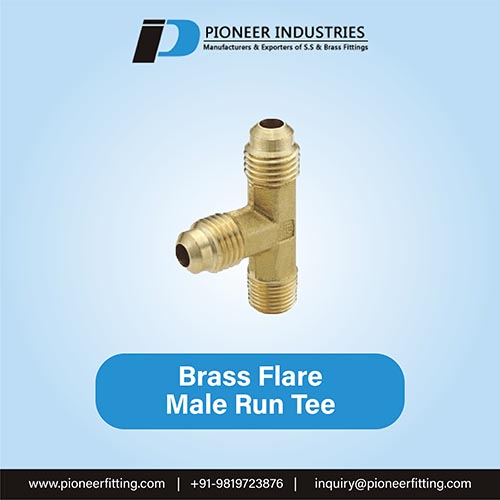

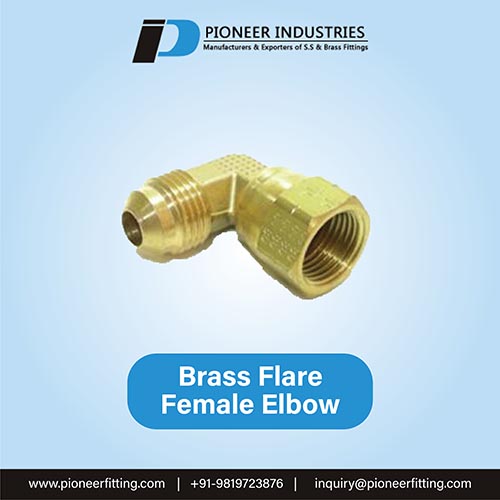

Buy best price high-quality, corrosion resistant Brass Flare Fittings, Brass tube fittings, Quality Brass Fittings, Flare Fitting Parts, Brass Flare Male Connector, Brass Flare Female Connector, Brass Flare Ball Check, Brass Flare Male Elbow, Brass Flare Female Elbow, Brass Flare 45 deg Male Elbow, Brass Flare Male Branch Tee, Brass Flare Male Run Tee, Brass Flare Union, Brass Flare Union Elbow, Brass Flare Union Tee, Brass Flare Long Union Nut, Brass Flare Short Union Nut, Brass Flare Nut from Pioneer Industries recognized for manufacturing quality-tested products using the latest manufacturing equipment at International Industry standards.

At Pioneer Industries, we offer these Industrial Brass Flare Fittings with the utmost functionality for your required applications. We are manufacturer, supplier of Brass Flare Fittings and India’s leading Brass Flare Fittings Exporters in Mumbai.

Global Supply

Pioneer Industries manufacturing and exporting high quality Brass Flare Fittings worldwide.

We are India’s one of the leading Brass Flare Fittings manufacturers and exporters to more than 85 countries to export and manufacture on a large scale. All size supply maintains a massive inventory of Brass Flare Fittings, with all standard sizes and numerous styles available.

Brass Flare Fittings are manufactured from high-quality materials that are sourced from trusted and reliable vendors. Most of the Brass Flare Fittings are available in various material grades, and coatings/plating’s are available. We’ve got the right product for your needs.

PDF Catalogue
Catalogue
Download the Brass Flare Fittings PDF

To Get Quotes within hour Call Us at 9821023876 or Send Enquiry for the products you requires

CALL 9821023876 SEND ENQUIRY
02 — Product Detail

Brass Flare Fittings Supplier

Flare fittings are a type of compression fitting used with metal tubing. Tube flaring is considered to be a type of forging operation, and is usually a cold working procedure. During assembly, a flare nut is used to secure the flared tubing’s tapered end to the tapered fitting, producing a pressure-resistant, leak-tight seal. Flared connections are often used in mission-critical and inaccessible locations as they offer a high degree of long-term reliability. Flare fittings consist of a body with a flared or coned end. Special flaring tools are used to install the tube to fit inside the flared end, providing a deep seal. Flare fittings can handle higher pressures and a wider range of operating parameters than standard compression fittings.

From that point, apply a one-sixth turn. Please note, do not over-torque as this may damage the fitting or split the tubing at the flare.

We at Pioneer Industries manufacture a wide variety of Brass Flare Fittings which find applications in numerous industries like Oil & Gas Industries, Chemical Industry, Nuclear Energy Sector, Petroleum Industries, Defence Industry, and Aerospace Industry. Available in numerous dimensions and grades. Pioneer Industries manufactures and exports high-quality industrial Brass Flare Fittings.

Features of Brass Flare Fittings:

  • High Pressure & Vacuum Integrity: Provides a deep, reliable metal-to-metal conical pressure seal resistant to high pressures and vacuum duty.
  • Superior Vibration Fatigue Resistance: Conical flare geometry resists loosening and fatigue cracking under high dynamic mechanical vibration.
  • Cold-Worked Forged Sealing: Tubing flare forms a clean, seamless contact face against precision machined 45° body seat.
  • No Open Flame Required: Safely replaces open-flame soldering and brazing in hazardous refrigerant and fuel gas environments.
  • Compact & Field Reusable: Easy to disconnect and reassemble during routine equipment maintenance and field overhauls.
  • Certified 4:1 Safety Factor: Designed with a 4:1 safety factor relative to matching tube burst pressures under ASME B31.3.
  • Broad Media Compatibility: Ideal for refrigerants (R-410A, R-32, R-134a), LP gas, natural gas, fuel oil, and hydraulic lines.
+ + + +
Specification

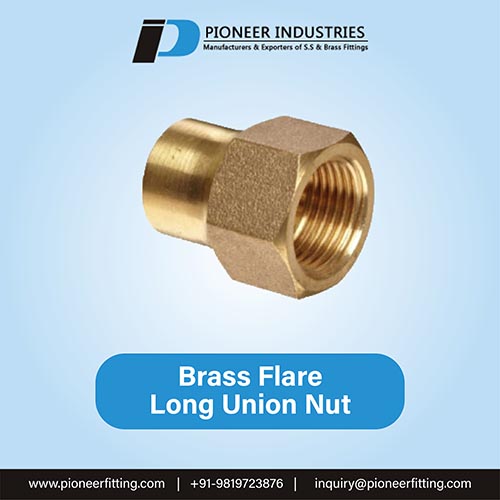

Sizes: 1/8″ to 3/4″ OD (Metric 4 mm to 20 mm OD) having various connecting thread profiles like SAE 45° Flare (UNF/UNS) and NPT, BSPT, BSPP pipe connection threads across Straight Connectors, Elbows, Tees, Crosses, Long Nuts, Short Nuts, and Ball Checks. Material of Construction: Free Cutting Brass (ASTM B16 C36000 / CW614N / IS 319 Gr. 1) and Forged Brass (ASTM B124 / B283 C37700). NACE MR0175 compliant alloys available upon request.

03 — Applications

Applications/Uses of Brass Flare Fittings

Brass Flare Fittings find use in a variety of industrial applications, including:

01

Oil and gas –

These Brass Flare Fittings find application in processing equipment such as tanks, drilling rigs, and pumps, and used in the oil and gas industries giving stable performance in high stress and corrosive conditions.

02

Building and Construction –

Scaffolding and other support structures requires variety Brass Flare Fittings to safeguard and guarantee the stability of structure during construction.

03

Chemical refining –

In chemical refineries, Brass Flare Fittings are made using corrosion resistant high performance materials, such as Brass, tool alloys, and exotic metals and find use in machineries such as heat exchangers, chemical tanks, and processing systems.

04

Marine –

Brass Flare Fittings installed in the marine industry necessitate excellent corrosion resistance to withstand the extended periods of exposure to saltwater that marine ramps, marine decks, bulkheads, and tanks experience.

05

Automobile and transportation –

Brass Flare Fittings are used to assemble a wide range of vehicles, including commercial vehicles like trucks, passenger vehicles like cars, airplanes, and specialized automobile equipment.

06

Power generation –

Distinctive applications include use in exhaust systems, electrical equipment, motors and pumps, and storage containers. These Brass Flare Fittings for the power generation industry are made of corrosion resistant and high strength materials such as Brass, aluminium, copper, nickel alloys, and other steel alloys.

07

Agriculture –

In the agricultural industry, these Fittings are used in field irrigation and filtration systems, and other farming equipment, drying units, buildings, and grain bins.

08

Military –

Military Brass Flare Fittings are manufactured and functionally designed to withstand extreme temperatures, corrosive compounds, and high stress environments and find applications like include equipment motors, heat exchangers, and engines, and processing equipment.

04 — Industries

Industries We Serve

Pioneer Industries’ Brass Flare Fittings are widely used in numerous industries like:

+ Pharmaceutical Equipment
+ Chemical Equipment
+ Sea Water Equipment
+ Heat Exchangers
+ Condensers
+ Pulp and Paper Industry
+ Power Generation
+ Gas Processing
+ Aerospace Industry
+ Nuclear Energy Sector
+ Off-Shore Oil Drilling
+ Oil & Gas Industries
+ Chemical Industry
+ Petroleum Industries
+ Defence Industry
05 — Range

Types of Brass Flare Fittings offered by Pioneer Industries

06 — FAQs

Frequently Asked Questions about Brass Flare Fittings

Answers to the questions mechanical engineers, HVAC contractors, and industrial procurement specialists most often ask before sourcing Brass Flare Fittings from Pioneer Industries.

A 45° Brass Flare Fitting is a heavy-duty mechanical tube connection engineered per SAE J512 and SAE J513 standards. Sealing is achieved by expanding the end of a seamless copper, brass, or aluminum tube to a precision 45-degree conical flare using a flaring tool. When the flare nut is tightened over the tube onto the male fitting body, the inner surface of the flared tube is clamped tightly between the external 45° nose of the fitting body and the internal 45° seat of the flare nut. This generates a high-compression, metal-to-metal seal capable of withstanding severe thermal shock, hydraulic pulsation, and high pressure without relying on elastomeric O-rings or chemical thread sealants.
Our Brass Flare Fittings are manufactured in strict compliance with SAE J512 (Automotive Tube Fittings), SAE J513 (Refrigeration Tube Fittings), ASME/ANSI B16.26 (Cast Copper Alloy Fittings for Flared Copper Tubes), and military MIL-F-18866 specifications. Connection threads on the flare ends utilize standard straight Unified National Fine (UNF / UNS) threads class 2A/2B, while pipe adapter ends feature standard NPT (ASME B1.20.1), BSPT (ISO 7/1), or BSPP (ISO 228/1) threads.
Operating pressure ratings depend upon the tube outer diameter (OD) and wall thickness. In fractional sizes from 1/8″ to 3/8″ OD, our brass flare fittings safely accommodate operating pressures up to 5,000 PSI (approx. 345 bar). For sizes 1/2″ to 3/4″ OD, pressure ratings range from 1,500 to 3,000 PSI (approx. 100 to 200 bar). All Pioneer Industries flare fittings are designed with a minimum certified 4:1 safety factor against bursting under ASME B31.3 process piping codes.
A single flare expands the tube end outward in a single conical lip, which is standard for soft copper refrigeration lines (sizes 3/8″ and larger) and general fuel delivery lines. A double flare folds the tube wall back inside itself before forming the 45° cone, creating a reinforced dual-thickness flare wall. Double flaring is mandatory for smaller copper tubing (under 3/8″ OD), thin-walled tubing, welded steel lines, and any high-vibration automotive or hydraulic applications to prevent flare lip thinning, cracking during torque make-up, and fatigue failure.
Pioneer Industries' Brass Flare Fittings are designed for use with soft annealed copper tubing (ASTM B88 Type K or L, ASTM B280 refrigeration service), seamless brass tubing, fully annealed aluminum tubing, and bendable thin-wall hydraulic steel tubing capable of taking a 45° flare without splitting. Hard-drawn tubing must be properly annealed prior to flaring to ensure grain structure pliability.
HVAC and refrigeration systems utilizing high-pressure modern refrigerants (such as R-410A, R-32, R-134a, and R-404A) experience extreme thermal cycling between -54°C and +121°C (-65°F to +250°F). Elastomeric seals degrade over time in the presence of synthetic POE oils and refrigerants. The pure metal-to-metal seal of a 45° brass flare joint maintains zero permeation, prevents refrigerant venting, eliminates open flame fire hazards associated with brazing in combustible environments, and provides full NFPA 54 / ANSI Z223.1 compliance for LP gas, propane, and natural gas piping.
Standard 45° brass flare fittings utilize a male nose cone on the fitting body and an externally threaded body with a female-threaded flare nut. Inverted flare fittings reverse this geometry: the fitting body has an internal female seat cavity, while the male flare nut threads into the body, enclosing the flare for superior vibration and compact automotive brake packaging. In contrast, compression fittings require no flaring tool at all, relying instead on an internal brass olive (ferrule) to bite into the tube wall, making compression faster to install but rated for lower dynamic fatigue resistance than flare joints.
To assemble: (1) Cut tubing square and deburr internal and external edges; (2) Slide the flare nut onto the tube before flaring; (3) Form a concentric 45° flare using an eccentric cone flaring tool; (4) Inspect the flare face for scoring or uneven lips; (5) Apply a drop of refrigeration or system-compatible oil to the male flare face and nut threads to minimize friction galling; (6) Thread the nut finger-tight; (7) Using a calibrated torque wrench or open-end wrench, tighten to recommended SAE torque values (typically 1/6 turn or 60° past finger-tight). Never over-torque, as excessive force thins the copper flare face and causes micro-cracking.
Yes, brass flare connections are designed for repeated disassembly and reconnection. Because the seal is mechanical and does not deform the fitting body, the joint can be loosened for maintenance and retightened without sacrificing pressure integrity. However, each time the joint is disassembled, the copper flare face must be visually inspected. If galling, thinning, or burrs are observed on the tube flare, cut off the old flare and form a fresh flare on the tube end.
Every production lot manufactured at Pioneer Industries undergoes stringent QA/QC protocol: 100% thread verification with optical comparators and hardened plug/ring gauges, helium mass spectrometer leak testing, pneumatic bubble immersion at 10 bar, and hydrostatic pressure proof testing. Dispatches are accompanied by EN 10204 Type 3.1 Material Test Certificates (MTCs) documenting raw material chemical composition (ASTM B16 C36000 / CW614N / IS 319 Gr. 1), tensile strength, hardness, and full batch traceability.
