Brass 2-way ball valve female to female manufacturer, supplier, and exporter in India

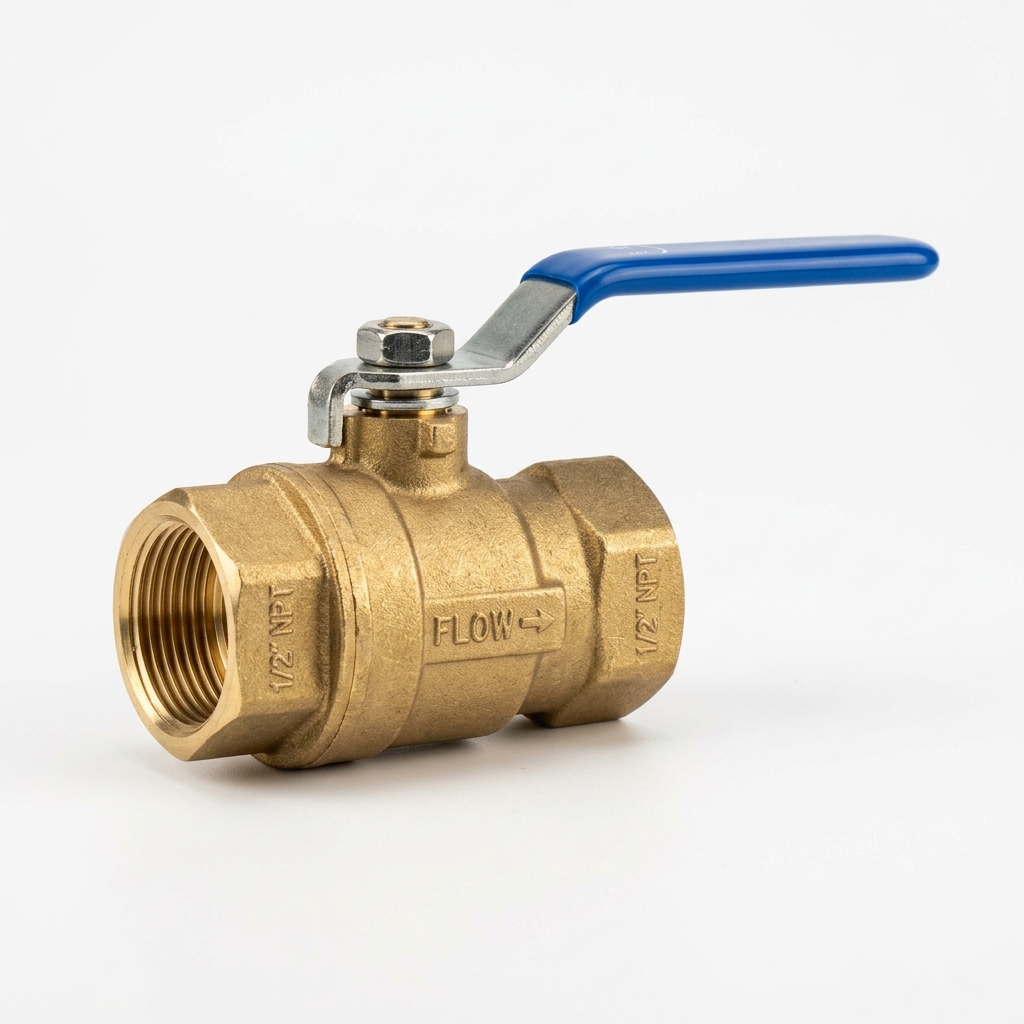

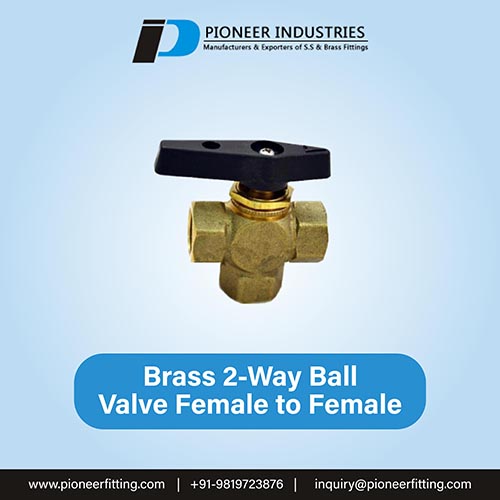

A Brass 2-Way Ball Valve Female to Female is an inline, quarter-turn fluid isolation valve featuring female internal pipe threads (such as NPT, BSPP, or BSPT) on both the inlet and outlet ports. Its bidirectional sealing mechanism consists of a micro-machined, mirror-polished spherical brass ball positioned between two resilient polymer seats (virgin PTFE, reinforced PTFE, or Delrin). When actuated 90 degrees via the handle, the through-bore aligns with the pipeline for straight, full or standard flow. In the closed position, line pressure pushes the floating ball against the downstream seat, creating an energized, bubble-tight, zero-leakage seal irrespective of fluid flow direction.

Pioneer Industries manufactures Brass 2-Way Female to Female Ball Valves rated for working pressures up to 6,000 PSI (400 bar) with standard virgin PTFE seats, and heavy-duty models rated up to 500 Bar (~7,250 PSI) using high-modulus Delrin (polyacetal) or PCTFE seats. All valve bodies are engineered with an ASME B31.3 compliant 4:1 hydrostatic burst safety factor, ensuring exceptional structural integrity and operator safety under rapid cyclic pressure pulsations.

Pioneer provides female threaded ports conforming to ANSI/ASME B1.20.1 (National Pipe Taper - NPT), ISO 228-1 / BS 2779 (British Standard Pipe Parallel - BSPP/G), and ISO 7-1 / BS 21 (British Standard Pipe Taper - BSPT/Rc). Port sizes range from 1/4″ to 2″ (DN8 to DN50). Precision CNC single-point thread machining guarantees clean lead-in chamfers, flawless thread flank angles, and tight gauge tolerance to prevent galling and leakage when mated with male pipe nipples.

The valve stem incorporates an integral machined collar that is wider than the stem passage in the bonnet body. The stem is inserted from inside the valve body cavity rather than from the exterior. Under high hydrostatic line pressure, process spikes, or mechanical vibration, internal system pressure firmly pushes the shoulder against the body recess, making it mechanically impossible for the stem to eject or blow out, thereby safeguarding personnel and equipment.

A Full Bore (Full Port) valve has an internal ball port diameter equal to the connecting pipe inside diameter. This delivers maximum flow coefficient (Cv), near-zero pressure drop, and minimal turbulence, making it the ideal choice for viscous media, high-velocity pneumatic loops, and slurry lines. A Reduced Bore valve features a ball orifice one nominal pipe size smaller, providing a compact body envelope, lower operating torque, and cost advantages in instrumentation sampling lines where minor head loss is permissible.

Yes. Pioneer Brass 2-Way Female to Female Ball Valves are engineered with an integrated external threaded bonnet neck and supplied with a heavy brass panel-mounting locknut. This design allows quick, secure bulkhead installation through instrumentation control panels, test console fascias, and analyzer enclosures up to 12 mm panel thickness without disassembling internal valve trim.

Pioneer offers Virgin PTFE for low-friction operation and broad chemical compatibility from -20°C to +180°C; 15% Carbon-filled PTFE for extended thermal cycle endurance up to +200°C; Delrin (polyacetal) for extreme mechanical strength in high-pressure hydraulic oils up to 500 Bar; and PEEK for elevated temperatures and harsh chemical resistance. Dynamic stem sealing is fortified with fluorocarbon Viton (FKM) or PTFE backup O-rings to eradicate fugitive atmospheric emissions.

Yes. Pioneer Brass Female to Female Ball Valves are extensively used in compressed air, nitrogen, argon, and natural gas distribution. On customer request, valves can be degreased, ultrasonically cleaned, and certified for oxygen service in compliance with ASTM G93 Level C, packaged in sealed polyethylene bags to prevent hydrocarbon contamination.

Each valve undergoes 100% factory inspection in accordance with API 598 and BS EN 12266-1. Quality testing includes a hydrostatic shell proof test at 1.5 times rated working pressure and a high-pressure pneumatic underwater nitrogen seat leakage test at 1,000 PSI to verify zero bubble leakage. Complete EN 10204 Type 3.1 Mill Test Certificates verifying alloy composition and mechanical properties accompany every consignment.

To guarantee leak-free assembly: (1) Ensure male mating pipe threads are deburred, clean, and free of metal chips; (2) Apply 2 to 3 wraps of quality PTFE tape or an anaerobic sealant such as Loctite 567 in a clockwise direction to male threads only; (3) Never apply sealant to internal female threads to prevent excess paste from contaminating internal valve seats; (4) Always use a backup wrench directly on the valve body hex flat adjacent to the connection being made rather than on the opposite hex or valve handle.
