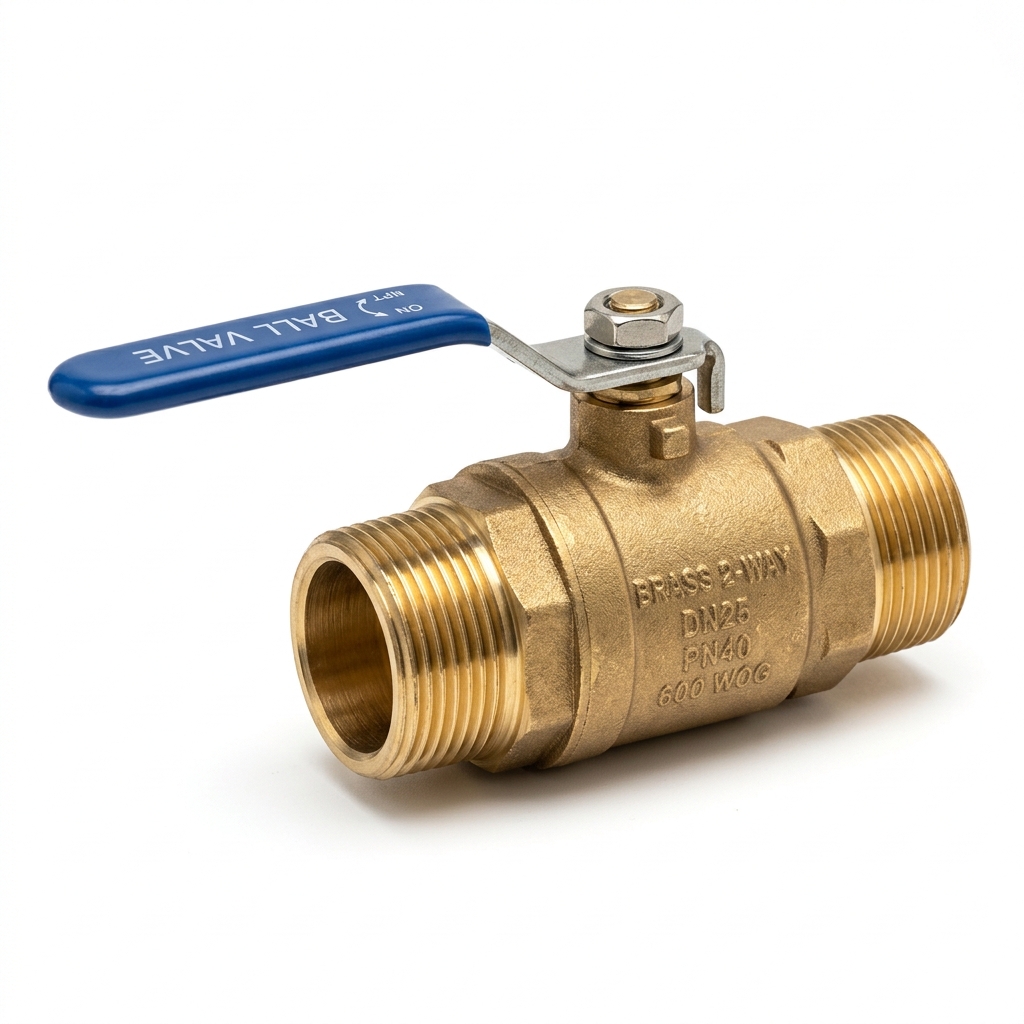

Brass 2-way ball valve Male to Male manufacturer, supplier, and exporter in India

A Brass 2-Way Ball Valve Male to Male is an inline quarter-turn shutoff valve featuring external male pipe threads on both the inlet and outlet ports. It is primarily deployed in fluid systems where two female-threaded components—such as female hydraulic hoses, female manifold blocks, filter housings, or quick-disconnect couplers—must be directly bridged without using additional threaded hex nipples. This design delivers a streamlined, lightweight valve assembly that drastically simplifies field plumbing.

In conventional systems connecting two female components, engineers are forced to thread a separate male nipple into each port of a standard female valve, creating four threaded leak points. The Pioneer Male to Male valve integrates both male threaded connections directly into a single hot-forged brass body. This cuts threaded connections by 50%, reduces overall face-to-face installation envelope, lowers line overhang stress, and eliminates potential thread misalignment.

Pioneer Brass 2-Way Male to Male Ball Valves are rated up to 6,000 PSI (400 bar) in standard virgin PTFE executions and up to 500 Bar (~7,250 PSI) when outfitted with heavy-duty Delrin (polyacetal) or PCTFE polymer seats. All valves comply strictly with ASME B31.3 chemical and process piping design codes with a 4:1 hydrostatic burst safety factor, ensuring exceptional structural endurance under severe pressure pulsations.

Pioneer manufactures male ports in ANSI/ASME B1.20.1 (NPT), ISO 7-1 / BS 21 (BSPT taper), and ISO 228-1 (BSPP parallel with undercut for sealing washer). Standard port sizes range from 1/4″ to 2″ (DN8 to DN50). Precision CNC single-point threading ensures clean root radii, razor-sharp flank angles, and tight gauge fitment to prevent galling and thread weeping under high torque.

The stem is machined with an integral bottom retention flange that is physically larger than the stem passage through the bonnet neck. During assembly, the stem is inserted from inside the valve body cavity prior to the ball and seats. Under elevated internal fluid pressure or extreme thermal expansion, the upward pressure forces the shoulder against the body stop recess, rendering stem blowout mechanically impossible.

The mirror-polished spherical brass ball floats freely between two resilient polymer seats. When closed, upstream fluid pressure forces the micro-finished sphere downstream, compressing it against the downstream seat. This mechanical self-energization creates an airtight seal that easily surpasses API 598 zero-bubble leakage criteria regardless of fluid flow direction.

Yes. Pioneer valve bodies are manufactured exclusively from hot-forged BS 218 / CW617N brass blanks. Hydraulic press forging aligns the crystalline metallurgical grain structure continuously around fluid passages, delivering more than 80% higher tensile and fatigue endurance compared to sand castings. This dense micro-structure resists harmonic vibration, mechanical shock, and cyclic bending moments.

Yes. Pioneer provides heavy-duty stainless steel lever handles equipped with integrated padlock locking tabs for OSHA-compliant Lockout/Tagout (LOTO) protocols in either the fully open or fully closed position. Heavy-duty black phenolic directional handles are also available for compact instrumentation panels.

Every single Pioneer valve undergoes 100% factory hydrostatic and pneumatic testing per API 598 and BS EN 12266-1. Testing includes a hydrostatic shell proof test at 1.5 times maximum working pressure and an underwater nitrogen seat leakage test at 1,000 PSI to verify zero gas leakage. Shipments are accompanied by authentic EN 10204 Type 3.1 Mill Test Certificates detailing chemical analysis and mechanical properties.

For leak-free connection: (1) Ensure female mating threads are deburred and free of shavings; (2) Apply 2 to 3 clockwise wraps of quality PTFE tape or an anaerobic sealant such as Loctite 567/577 to both male thread ends; (3) When tightening into the mating female port, always place a backup wrench directly on the valve body hex flat adjacent to the connection being made; (4) Never apply wrench torque across the center valve body or directly against the lever handle.
