Brass 2-way ball valve Male to Female manufacturer, supplier, and exporter in India

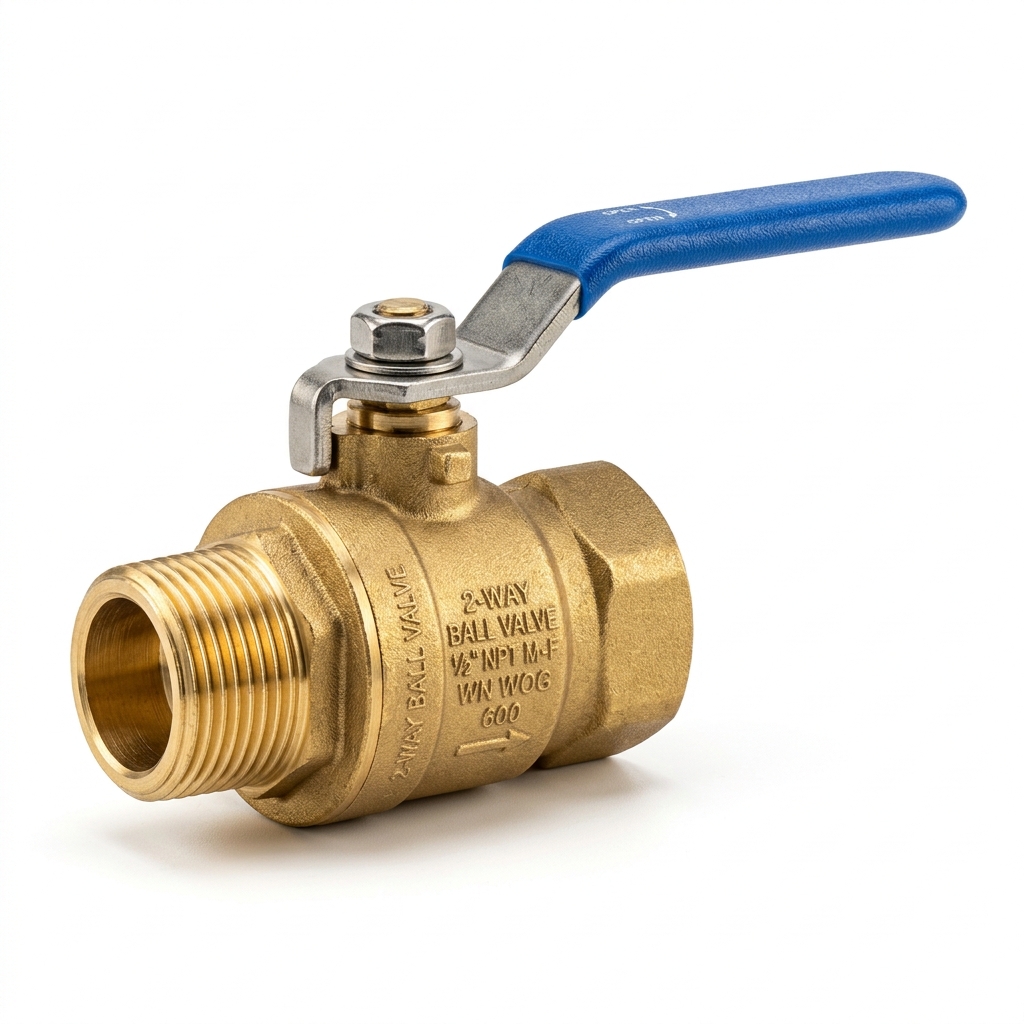

A Brass 2-Way Ball Valve Male to Female is an inline isolation valve configured with an external male threaded port on one end and an internal female threaded port on the opposite end. Engineers prefer this configuration because the male port threads directly into female manifold blocks, pressure vessel nozzles, pump casings, or air header taps without requiring an intermediate hex pipe nipple. This compact direct-coupling reduces spatial overhang, minimizes installation labor, and provides immediate isolation control for pressure transmitters, gauges, and sampling lines.

In conventional piping, connecting a standard double-female valve to an equipment port requires an additional male pipe nipple, creating two separate threaded joints. The Pioneer Male to Female Ball Valve integrates the male pipe thread directly onto the forged brass body, completely eliminating one threaded interface. By reducing the total number of threaded joints by 50%, it substantially lowers the probability of fugitive emissions, thread weeping under thermal cycling, and vibration-induced loosening.

Pioneer Brass 2-Way Male to Female Ball Valves are rated up to 6,000 PSI (400 bar) in standard virgin PTFE seat executions, and up to 500 Bar (approx. 7,250 PSI) when specified with engineered Delrin (polyacetal) or PCTFE seats for hydraulic service. Engineered with an ASME B31.3 4:1 safety factor against hydrostatic burst, operational continuous temperatures range from -20°C to +180°C (-4°F to +356°F) with standard seals, and up to +200°C with carbon-filled PTFE.

Pioneer manufactures male and female ports in American National Pipe Taper (NPT per ASME B1.20.1), British Standard Pipe Taper (BSPT per ISO 7-1 / BS 21), and British Standard Pipe Parallel (BSPP per ISO 228-1). Common combinations include Male NPT x Female NPT, Male BSPT x Female BSPP, and custom mixed metric combinations in sizes from 1/4″ to 2″ (DN8 to DN50).

The valve stem features an integral bottom shoulder machined from solid brass bar stock that is physically larger than the bonnet neck through-bore. The stem is inserted from inside the valve body cavity before seat and ball installation. Under extreme internal pressure pulses, water hammer, or external gland adjustment, line pressure forces the shoulder upward against the body recess, mechanically preventing stem blowout and safeguarding field operators.

The precision micro-finished spherical brass ball floats within resilient polymer seats without rigid trunnion pinning. When the valve is closed, upstream fluid pressure acts against the effective ball area, pushing the sphere firmly against the downstream seat. This mechanical camming action creates a contact stress higher than the fluid pressure, resulting in an airtight, bubble-tight seal meeting API 598 zero-leakage criteria.

Yes. Pioneer manufactures valve bodies exclusively from hot-forged BS 218 / CW617N brass. Hot forging aligns the crystalline metallurgical grain structure along fluid passages, providing over 80% higher fatigue and impact resistance than cast brass. This robust density, combined with an integrated male connection that eliminates cantilevered pipe nipples, excels under severe cyclic vibration found on reciprocating air compressors, diesel generator fuel rails, and mobile hydraulic equipment.

Yes. Pioneer offers an optional panel-mount bonnet configuration equipped with external machine threads and a heavy brass locking nut for instrument control consoles up to 12 mm thick. Additionally, for plant safety compliance, valves can be supplied with stainless steel locking lever handles accommodating standard padlocks for Lockout/Tagout (LOTO) procedures.

Every single valve is 100% factory inspected and tested in accordance with API 598 and BS EN 12266-1. Testing protocols include hydrostatic body proof tests at 1.5 times rated pressure and underwater pneumatic nitrogen seat tests at 1,000 PSI to verify zero gas leakage. Authentic EN 10204 Type 3.1 Mill Test Certificates detailing chemical analysis and mechanical properties are provided with dispatch.

For leak-free installation: (1) Ensure male and female threads are clean and free from burrs; (2) Apply 2 to 3 wraps of quality PTFE tape or an anaerobic sealant (Loctite 567/577) clockwise onto the external male threads only; (3) Do not apply sealant to internal female threads; (4) Thread the male end into the mating equipment port finger-tight, then tighten with an open-end wrench placed strictly on the valve body hex flats adjacent to the male port—never apply wrench torque across the valve body or to the lever handle.
